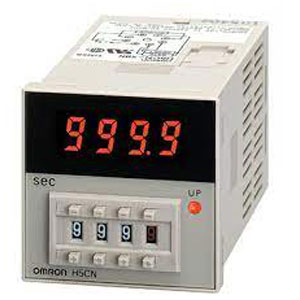

H5CN-XBN AC100-240: Omron AC UP Medium Timer
Technical Specification Omron AC UP Medium Timer H5CN-XBN AC100-240:
| Spec | Value |
|---|---|
| Time Ranges | 0.01 to 99.99 s |
| Output Modes | N: Power ON delay |
| Display Method | 7-segment LED 4 digit |
| Mounting Method | Flush mounting / Surface mounting |
Omron AC UP Medium Timer H5CN-XBN AC100-240 Technical Specifications:
| Specification | Value |
|---|---|
| Rated supply voltage | 100 to 240 VAC (50/60 Hz) |
| Operating voltage range | 85 to 110% of rated supply voltage |
| Power consumption | Approx. 12 VA (at 240 VAC)/Approx. 2.5 W (at 240 VAC) |
| Time ranges (Number of ranges) | 1 |
| Time ranges | 0.01 to 99.99 s |
| Input method | Contact: Contact open and short-circuit input No-contact: Open-collector transistor ON/OFF input |
| Output modes | N: Power ON delay |
| Control output (Contact output) | SPDT Resistive load: 3 A at 250 VAC (cosφ=1) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Reset system | Power reset/External reset |
| Power reset | Minimum power-opening time: 0.5 s |
| External reset and Gate | Minimum input signal width: 0.02 s Residual voltage: 2 V max. |
| Timer mode | UP display timer (increments form 0 to the set time) |
| Display method | 7-segment LED 4 digit |
| Character height | 10 mm |
| Ambient temperature (Storage) | -10 to 55 ℃ (with no icing) |
| Ambient humidity (Operating) | -25 to 65 ℃ (with no icing) |
| Ambient humidity range | 35 to 85% |
| Mounting method | Flush mounting / Surface mounting |
| External connection method | 8-pin round socket |
| Case color | Light gray (Munsell 5Y7/1) |
| Weight | Approx. 110 g |
IndMALL Automation Offers Omron AC UP Medium Timer, H5CN-XBN AC100-240 with exclusive offers. Component Specifications of H5CN-XBN AC100-240 features Flush mounting / Surface mounting, 8-pin round socket, Light gray (Munsell 5Y7/1), 100 to 240 VAC (50/60 Hz), 85 to 110% of rated supply voltage, 1, 0.01 to 99.99 s & Contact: Contact open and short-circuit input
No-contact: Open-collector transistor ON/OFF input. It rounds off its features with N: Power ON delay, 10 mm & -10 to 55 ℃ (with no icing). Don't Miss Out on a Quote for your requirement of Omron AC UP Medium Timer.
