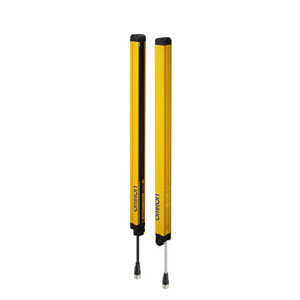

F3SJ-B1745P25-01TS: Omron PNP 1745mm Safety Curtain
Technical Specifications of Omron PNP 1745mm Safety Curtain F3SJ-B1745P25-01TS
| Spec | Value |
|---|---|
| Application | Hand protection |
| Sensing Object | 25 mm dia. |
| Protective Height | 1745 mm |
| Output | PNP |
Omron PNP 1745mm Safety Curtain F3SJ-B1745P25-01TS Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand protection |
| Detection capability | Opaque objects |
| Sensing Object | 25 mm dia. |
| Beam Gap | 20 mm |
| Number of Beams | 86 Beams |
| Protective Height | 1745 mm |
| Output | PNP |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 7 m |
| Response time (Normal mode) ON→OFF | 15 ms |
| Response time (Normal mode) OFF→ON | 70 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 67 mA max.; Emitter: 101 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Weight (g) = (protective height) x 1.62 + 110 |
Reach Us by Email for Omron PNP 1745mm Safety Curtain at attractive prices. Engineering Specifications of F3SJ-B1745P25-01TS are Opaque objects, Hand protection, 1745 mm protective height, 25 mm dia. & 20 mm beam gap, 86 Beams, 5 mm lens diameter, PNP Output, Infrared LED (870 nm), Receiver: 67 mA max.; Emitter: 101 mA max. power supply, IP65 (IEC 60529) Current Consumption, 0.2 to 7 m Operating range, 24 VDC±20% Ripple 10% max. light source. Match Your Needs with a Quote for your requirement of Omron PNP 1745mm Safety Curtain. Our pricing and support are unrivaled, especially when compared to other Dealers.
