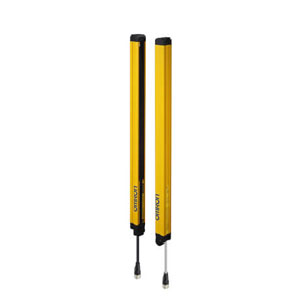

F3SJ-B1585P25-01TS: Omron 78 Beams PNP Safety Curtain
Technical Specifications of Omron 78 Beams PNP Safety Curtain F3SJ-B1585P25-01TS
| Spec | Value |
|---|---|
| Application | Hand protection |
| Sensing Object | 25 mm dia. |
| Protective Height | 1585 mm |
| Output | PNP |
Omron 78 Beams PNP Safety Curtain F3SJ-B1585P25-01TS Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand protection |
| Detection capability | Opaque objects |
| Sensing Object | 25 mm dia. |
| Beam Gap | 20 mm |
| Number of Beams | 78 Beams |
| Protective Height | 1585 mm |
| Output | PNP |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 7 m |
| Response time (Normal mode) ON→OFF | 15 ms |
| Response time (Normal mode) OFF→ON | 70 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 61 mA max.; Emitter: 88 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Weight (g) = (protective height) x 1.62 + 110 |
Obtain a Quote for Omron 78 Beams PNP Safety Curtain F3SJ-B1585P25-01TS at attractive prices. Engineering Specifications of F3SJ-B1585P25-01TS detail Opaque objects, Hand protection, 1585 mm protective height, 25 mm dia. & 20 mm beam gap, 78 Beams, 5 mm lens diameter, PNP Output, Infrared LED (870 nm), Receiver: 61 mA max.; Emitter: 88 mA max. power supply, IP65 (IEC 60529) Current Consumption, 0.2 to 7 m Operating range, 24 VDC±20% Ripple 10% max. light source. Navigate Your Needs with a Quote for your requirement of Omron 78 Beams PNP Safety Curtain. We excel in offering more cost-effective and supportive solutions than other Competitors.
