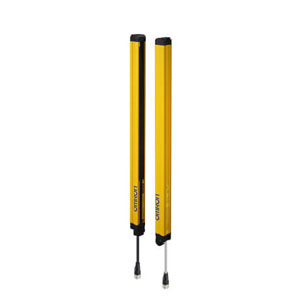

F3SJ-A2495N30: Omron 2495mm Protective Height Light Curtain
Technical Specifications of Omron 2495mm Protective Height Light Curtain F3SJ-A2495N30
| Spec | Value |
|---|---|
| Application | Hand/arm protection |
| Sensing Object | 30 mm dia. |
| Protective Height | 2495 mm |
| Output | NPN |
Omron 2495mm Protective Height Light Curtain F3SJ-A2495N30 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand/arm protection |
| Detection capability | Opaque objects |
| Sensing Object | 30 mm dia. |
| Beam Gap | 25 mm |
| Number of Beams | 100 Beams |
| Protective Height | 2495 mm |
| Output | NPN |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 7 m |
| Response time (Normal mode) ON→OFF | 17.5 ms |
| Response time (Normal mode) OFF→ON | 70 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 90 mA max.; Emitter: 106 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Main Unit: Approx. 3.7 kg Package: Approx. 6.3 kg |
Ask for the Pricing of Omron 2495mm Protective Height Light Curtain F3SJ-A2495N30 at unbeatable prices. Detailed Specifications of F3SJ-A2495N30 feature Opaque objects, Hand/arm protection, 2495 mm protective height, 30 mm dia. & 25 mm beam gap, 100 Beams, 5 mm lens diameter, NPN Output, 24 VDC±20% Ripple 10% max. power supply, Receiver: 90 mA max.; Emitter: 106 mA max. Current Consumption, 0.2 to 7 m Operating range, Infrared LED (870 nm) light source. It's Time to get a Quote for your requirement of Omron 2495mm Protective Height Light Curtain. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
