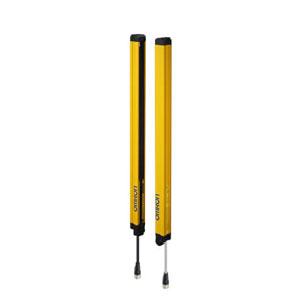

F3SJ-A1655P20: Omron 110 Beams Hand Protection Light Curtain
Technical Specifications of Omron 110 Beams Hand Protection Light Curtain F3SJ-A1655P20
| Spec | Value |
|---|---|
| Application | Hand protection |
| Sensing Object | 20 mm dia. |
| Protective Height | 1655 mm |
| Output | PNP |
Omron 110 Beams Hand Protection Light Curtain F3SJ-A1655P20 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand protection |
| Detection capability | Opaque objects |
| Sensing Object | 20 mm dia. |
| Beam Gap | 15 mm |
| Number of Beams | 110 Beams |
| Protective Height | 1655 mm |
| Output | PNP |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 7 m |
| Response time (Normal mode) ON→OFF | 17.5 ms |
| Response time (Normal mode) OFF→ON | 70 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 111 mA max.; Emitter: 130 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Package: Approx. 4.4825 kg |
Send Us an Email for Omron 110 Beams Hand Protection Light Curtain F3SJ-A1655P20 at the lowest pricing. Technical Specs Summary of F3SJ-A1655P20 includes Opaque objects, Hand protection, 1655 mm protective height, 20 mm dia. & 15 mm beam gap, 110 Beams, 5 mm lens diameter, PNP Output, 24 VDC±20% Ripple 10% max. power supply, Receiver: 111 mA max.; Emitter: 130 mA max. Current Consumption, 0.2 to 7 m Operating range, Infrared LED (870 nm) light source. Capture the Best Deal with a Quote for your requirement of Omron 110 Beams Hand Protection Light Curtain. Our promise: More affordable pricing and more personalized support than other Competitors.
