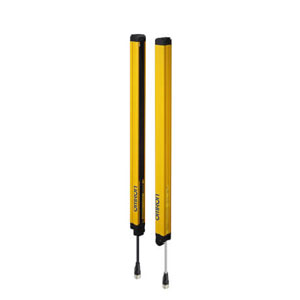

F3SJ-A1395N30: Omron 1395mm NPN 25mm Gap Light Curtain
Technical Specifications of Omron 1395mm NPN 25mm Gap Light Curtain F3SJ-A1395N30
| Spec | Value |
|---|---|
| Application | Hand/arm protection |
| Sensing Object | 30 mm dia. |
| Protective Height | 1395 mm |
| Output | NPN |
Omron 1395mm NPN 25mm Gap Light Curtain F3SJ-A1395N30 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand/arm protection |
| Detection capability | Opaque objects |
| Sensing Object | 30 mm dia. |
| Beam Gap | 25 mm |
| Number of Beams | 56 Beams |
| Protective Height | 1395 mm |
| Output | NPN |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 9 m |
| Response time (Normal mode) ON→OFF | 14 ms |
| Response time (Normal mode) OFF→ON | 56 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 90 mA max.; Emitter: 106 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Main Unit: Approx. 2.2 kg Package: Approx. 4.1 kg |
Send Your Inquiry for Omron 1395mm NPN 25mm Gap Light Curtain F3SJ-A1395N30 at unbeatable prices. The Main Technical Parameters of F3SJ-A1395N30 feature Opaque objects, Hand/arm protection, 1395 mm protective height, 30 mm dia. & 25 mm beam gap, 56 Beams, 5 mm lens diameter, NPN Output, 24 VDC±20% Ripple 10% max. power supply, Receiver: 90 mA max.; Emitter: 106 mA max. Current Consumption, 0.2 to 9 m Operating range, Infrared LED (870 nm) light source. Don't Miss Out on a Quote for your requirement of Omron 1395mm NPN 25mm Gap Light Curtain. Experience the difference with our competitive pricing and superior support over other Traders.
