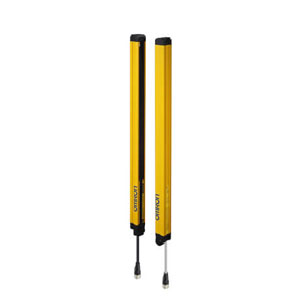

F3SJ-A0875N14: Omron 96 Beams Finger Safety Light Curtain
Technical Specifications of Omron 96 Beams Finger Safety Light Curtain F3SJ-A0875N14
| Spec | Value |
|---|---|
| Application | Finger protection |
| Sensing Object | 14 mm dia. |
| Protective Height | 875 mm |
| Output | NPN |
Omron 96 Beams Finger Safety Light Curtain F3SJ-A0875N14 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Finger protection |
| Detection capability | Opaque objects |
| Sensing Object | 14 mm dia. |
| Beam Gap | 9 mm |
| Number of Beams | 96 Beams |
| Protective Height | 875 mm |
| Output | NPN |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 9 m |
| Response time (Normal mode) ON→OFF | 17.5 ms |
| Response time (Normal mode) OFF→ON | 70 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 90 mA max.; Emitter: 106 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Main Unit: Approx. 1.7 kg Package: Approx. 3 kg |
Mail Us for your needs in Omron 96 Beams Finger Safety Light Curtain F3SJ-A0875N14 with budget-friendly prices. The Main Technical Parameters of F3SJ-A0875N14 include Opaque objects, Finger protection, 875 mm protective height, 14 mm dia. & 9 mm beam gap, 96 Beams, 5 mm lens diameter, NPN Output, 24 VDC±20% Ripple 10% max. power supply, Receiver: 90 mA max.; Emitter: 106 mA max. Current Consumption, 0.2 to 9 m Operating range, Infrared LED (870 nm) light source. Customize Your Experience with a Quote for your requirement of Omron 96 Beams Finger Safety Light Curtain. Experience the difference with our competitive pricing and superior support over other Suppliers.
