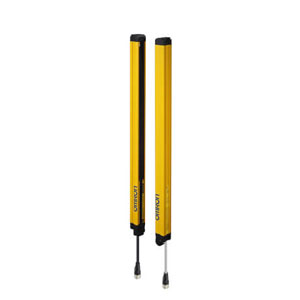

F3SJ-A0455P20: Omron 30 Beams Hand Protection Safety Curtain
Technical Specifications of Omron 30 Beams Hand Protection Safety Curtain F3SJ-A0455P20
| Spec | Value |
|---|---|
| Application | Hand protection |
| Sensing Object | 20 mm dia. |
| Protective Height | 455 mm |
| Output | PNP |
Omron 30 Beams Hand Protection Safety Curtain F3SJ-A0455P20 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand protection |
| Detection capability | Opaque objects |
| Sensing Object | 20 mm dia. |
| Beam Gap | 15 mm |
| Number of Beams | 30 Beams |
| Protective Height | 455 mm |
| Output | PNP |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 9 m |
| Response time (Normal mode) ON→OFF | 12 ms |
| Response time (Normal mode) OFF→ON | 48 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 68 mA max.; Emitter: 76 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Main Unit: Approx. 0.9 kg Package: Approx. 1.8 kg |
Ask for the Pricing of Omron 30 Beams Hand Protection Safety Curtain at unbeatable prices. Detailed Specifications of F3SJ-A0455P20 feature Opaque objects, Hand protection, 455 mm protective height, 20 mm dia. & 15 mm beam gap, 30 Beams, 5 mm lens diameter, PNP Output, 24 VDC±20% Ripple 10% max. power supply, Receiver: 68 mA max.; Emitter: 76 mA max. Current Consumption, 0.2 to 9 m Operating range, Infrared LED (870 nm) light source. It's Time to get a Quote for your requirement of Omron 30 Beams Hand Protection Safety Curtain. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
