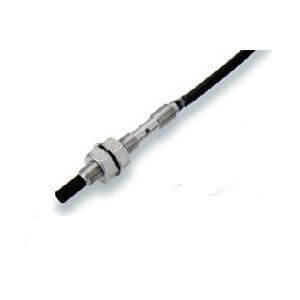

E2E-S05N03-WC-C1 2M: Omron 3mm Proximity Sensor
Technical Specifications of Omron 3mm Proximity Sensor E2E-S05N03-WC-C1 2M:
| Spec | Value |
|---|---|
| Sensing head size | M5 |
| Mounting type | Unshielded |
| Sensing distance | 3 mm |
| Connection method | Pre-wired Models (2 m) |
Omron 3mm Proximity Sensor E2E-S05N03-WC-C1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | M5 |
| Power source | DC 3-wire, |
| Mounting type | Unshielded |
| Sensing distance | 3 mm |
| Connection method | Pre-wired Models (2 m) |
| "Cable specifications" | PVC |
| Output | NPN open collector |
| Operation mode | Normally open (NO) |
| Response frequency | 2 kHz |
| Power supply voltage | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Weight | Approx. 40 g |
Reach Us by Email for Omron 3mm Proximity Sensor E2E-S05N03-WC-C1 2M at the best rates. Technical Configuration of E2E-S05N03-WC-C1 2M are M5, Unshielded mounting, 3 mm Sensing Distance, Pre-wired Models (2 m), PVC cable, DC 3-wire, power source, NPN open collector output, Normally open (NO), 2 kHz frequency, 10 to 30 VDC power Supply, 10 mA max., current consumption. Unlock Exclusive Pricing with a Quote for your requirement of Omron 3mm Proximity Sensor. We're committed to offering more favorable pricing and more responsive support than other Distributors.
