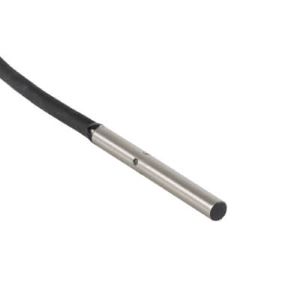

E2E-S04SR8-CJ-C1 0.3M: Omron M4 NPN Inductive Sensor
Technical Specifications of Omron M4 NPN Inductive Sensor E2E-S04SR8-CJ-C1 0.3M:
| Spec | Value |
|---|---|
| Sensing head size | M4 |
| Mounting type | Shielded |
| Sensing distance | 0.8 mm |
| Connection method | M8 Pre-wired Connector Models (0.3 m) |
Omron M4 NPN Inductive Sensor E2E-S04SR8-CJ-C1 0.3M Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | M4 |
| Power source | DC 3-wire, |
| Mounting type | Shielded |
| Sensing distance | 0.8 mm |
| Connection method | M8 Pre-wired Connector Models (0.3 m) |
| "Cable specifications" | PVC |
| Output | NPN open collector |
| Operation mode | Normally open (NO) |
| Response frequency | 5 kHz |
| Power supply voltage | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Weight | Approx. 20 g |
Ask for the Pricing of Omron M4 NPN Inductive Sensor E2E-S04SR8-CJ-C1 0.3M at unbeatable prices. Detailed Specifications of E2E-S04SR8-CJ-C1 0.3M feature M4, Shielded mounting, 0.8 mm Sensing Distance, M8 Pre-wired Connector Models (0.3 m), PVC cable, DC 3-wire, power source, NPN open collector output, Normally open (NO), 5 kHz frequency, 10 to 30 VDC power Supply, 10 mA max., current consumption. It's Time to get a Quote for your requirement of Omron M4 NPN Inductive Sensor. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
