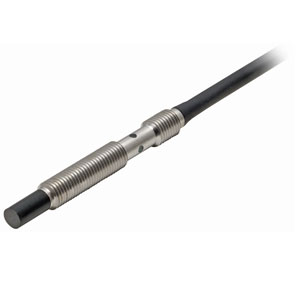

E2E-S04N02-WC-B1 5M: Omron M4 PNP Unshielded Proximity Sensor
Technical Specifications of Omron M4 PNP Unshielded Proximity Sensor E2E-S04N02-WC-B1 5M:
| Spec | Value |
|---|---|
| Sensing head size | M4 |
| Mounting type | Unshielded |
| Sensing distance | 2 mm |
| Connection method | Pre-wired Models (5 m) |
Omron M4 PNP Unshielded Proximity Sensor E2E-S04N02-WC-B1 5M Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | M4 |
| Power source | DC 3-wire, |
| Mounting type | Unshielded |
| Sensing distance | 2 mm |
| Connection method | Pre-wired Models (5 m) |
| "Cable specifications" | PVC |
| Output | PNP open collector |
| Operation mode | Normally open (NO) |
| Response frequency | 3.5 kHz |
| Power supply voltage | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Weight | Approx. 30 g |
Send Us an Email for Omron M4 PNP Unshielded Proximity Sensor E2E-S04N02-WC-B1 5M with budget-friendly prices. Technical Attributes of E2E-S04N02-WC-B1 5M includes M4, Unshielded mounting, 2 mm Sensing Distance, Pre-wired Models (5 m), PVC cable, DC 3-wire, power source, PNP open collector output, Normally open (NO), 3.5 kHz frequency, 10 to 30 VDC power Supply, 10 mA max., current consumption. Now's the Time to Secure Quote for your requirement of Omron M4 PNP Unshielded Proximity Sensor. Rest assured, our pricing and support outshine other Suppliers.
