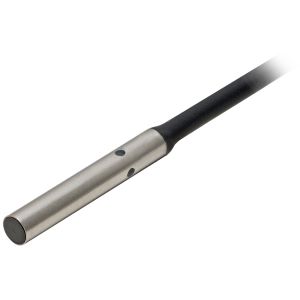

E2E-C04S12-WC-B2 2M: Omron 1.2mm Cylindrical Proximity Sensor
Technical Specifications of Omron 1.2mm Cylindrical Proximity Sensor E2E-C04S12-WC-B2 2M:
| Spec | Value |
|---|---|
| Sensing head size | 4 dia. |
| Mounting type | Shielded |
| Sensing distance | 1.2 mm |
| Connection method | Pre-wired Models (2 m) |
Omron 1.2mm Cylindrical Proximity Sensor E2E-C04S12-WC-B2 2M Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | 4 dia. |
| Power source | DC 3-wire, |
| Mounting type | Shielded |
| Sensing distance | 1.2 mm |
| Connection method | Pre-wired Models (2 m) |
| "Cable specifications" | PVC |
| Output | PNP open collector |
| Operation mode | Normally closed (NC) |
| Response frequency | 4 kHz |
| Power supply voltage | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Weight | Approx. 35 g |
Give Us a Call for Omron 1.2mm Cylindrical Proximity Sensor E2E-C04S12-WC-B2 2M with budget-friendly prices. Technical Attributes of E2E-C04S12-WC-B2 2M include Cylindrical type, 4 dia., Shielded mounting, 1.2 mm Sensing Distance, Pre-wired Models (2 m), PVC cable, DC 3-wire, power source, PNP open collector output, Normally closed (NC), 4 kHz frequency, 10 to 30 VDC power Supply, 10 mA max., current consumption. Navigate Your Needs with a Quote for your requirement of Omron 1.2mm Cylindrical Proximity Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
