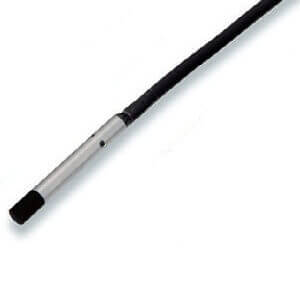

E2E-C04N03-WC-B2 2M: Omron 2M Cylindrical Proximity Sensor
Technical Specifications of Omron 2M Cylindrical Proximity Sensor E2E-C04N03-WC-B2 2M:
| Spec | Value |
|---|---|
| Sensing head size | 4 dia. |
| Mounting type | Unshielded |
| Sensing distance | 3 mm |
| Connection method | Pre-wired models (2 m) |
Omron 2M Cylindrical Proximity Sensor E2E-C04N03-WC-B2 2M Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | 4 dia. |
| Power source | DC 3-wire, |
| Mounting type | Unshielded |
| Sensing distance | 3 mm |
| Connection method | Pre-wired models (2 m) |
| "Cable specifications" | PVC |
| Output | PNP open collector |
| Operation mode | Normally closed (NC) |
| Response frequency | 2 kHz |
| Power supply voltage | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Weight | Approx. 35 g |
Get A Quote for Omron 2M Cylindrical Proximity Sensor E2E-C04N03-WC-B2 2M at the best price. Here are the brief Technical Specifications of E2E-C04N03-WC-B2 2M are Cylindrical type, 4 dia., Unshielded mounting, 3 mm Sensing Distance, Pre-wired models (2 m), PVC cable, DC 3-wire, power source, PNP open collector output, Normally closed (NC), 2 kHz frequency, 10 to 30 VDC power Supply, 10 mA max., current consumption. It's Time to get a Quote for your requirement of Omron 2M Cylindrical Proximity Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
