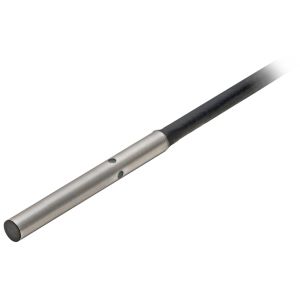

E2E-C03SR8-CJ-C2 0.3M: Omron 0.3m Compact Proximity Sensor
Technical Specifications of Omron 0.3m Compact Proximity Sensor E2E-C03SR8-CJ-C2 0.3M:
| Spec | Value |
|---|---|
| Sensing head size | 3 dia. |
| Mounting type | Shielded |
| Sensing distance | 0.8 mm |
| Connection method | M8 Pre-wired Connector Models (0.3 m) |
Omron 0.3m Compact Proximity Sensor E2E-C03SR8-CJ-C2 0.3M Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | 3 dia. |
| Power source | DC 3-wire, |
| Mounting type | Shielded |
| Sensing distance | 0.8 mm |
| Connection method | M8 Pre-wired Connector Models (0.3 m) |
| "Cable specifications" | PVC |
| Output | NPN open collector |
| Operation mode | Normally closed (NC) |
| Response frequency | 5 kHz |
| Power supply voltage | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Weight | Package: Approx. 20 g |
Give Us a Call for Omron 0.3m Compact Proximity Sensor E2E-C03SR8-CJ-C2 0.3M with budget-friendly prices. Technical Attributes of E2E-C03SR8-CJ-C2 0.3M include Cylindrical type, 3 dia., Shielded mounting, 0.8 mm Sensing Distance, M8 Pre-wired Connector Models (0.3 m), PVC cable, DC 3-wire, power source, NPN open collector output, Normally closed (NC), 5 kHz frequency, 10 to 30 VDC power Supply, 10 mA max., current consumption. Navigate Your Needs with a Quote for your requirement of Omron 0.3m Compact Proximity Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
