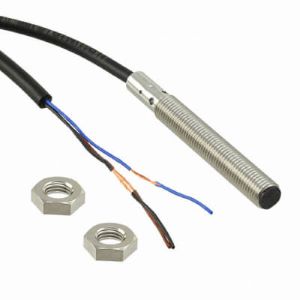

E2B-S08LS01-WP-C2 2M: Omron Pre-wired PVC Cable Inductive Sensor
Technical Specifications of Omron Pre-wired PVC Cable Inductive Sensor E2B-S08LS01-WP-C2 2M:
| Spec | Value |
|---|---|
| Size | M8 |
| Mounting Type | Flush | Shielded |
| Output Type | NPN |
| Connection Method | Pre-wired PVC cable, 2m length |
Omron Pre-wired PVC Cable Inductive Sensor E2B-S08LS01-WP-C2 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M8 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 1.5 mm |
| Connection method | Pre-wired PVC cable, 2m length |
| Body Length | Long body |
| Response frequency | 2,000 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | NPN |
| Operation mode | NC |
| Overall length | 64 mm |
| Thread length | 49 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
IndMALL offers Omron Pre-wired PVC Cable Inductive Sensor E2B-S08LS01-WP-C2 2M with the best rates. Product Technical Specifications of E2B-S08LS01-WP-C2 2M are M8 diameter, Flush | Shielded mounting, 1.5 mm Sensing Distance, Pre-wired PVC cable, 2m length, Long body, 10 to 30 VDC power Supply, 3-wire NPN, NC output, IP67 degree of protection. It's Time to get a Quote for your requirement of Omron Pre-wired PVC Cable Inductive Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
