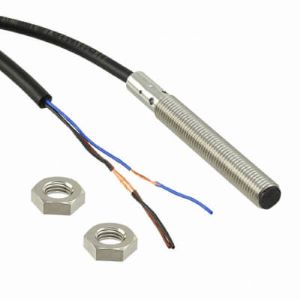

E2B-S08LS01-MC-B2: Omron 1.5mm PNP NC Inductive Sensor
Technical Specifications of Omron 1.5mm PNP NC Inductive Sensor E2B-S08LS01-MC-B2:
| Spec | Value |
|---|---|
| Size | M8 |
| Mounting Type | Flush | Shielded |
| Output Type | PNP |
| Connection Method | M8 Connector 3-pin |
Omron 1.5mm PNP NC Inductive Sensor E2B-S08LS01-MC-B2 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M8 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 1.5 mm |
| Connection method | M8 Connector 3-pin |
| Body Length | Long body |
| Response frequency | 2,000 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NC |
| Overall length | 66 mm |
| Thread length | 49 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Reach Us by Email for Omron 1.5mm PNP NC Inductive Sensor E2B-S08LS01-MC-B2 part no: E2B-S08LS01-MC-B2: Omron 1.5mm PNP NC Inductive Sensor at attractive prices. In-depth Technical Analysis of E2B-S08LS01-MC-B2 feature M8 diameter, Flush | Shielded mounting, 1.5 mm Sensing Distance, M8 Connector 3-pin, Long body, 10 to 30 VDC power Supply, 3-wire PNP, NC output, IP67 degree of protection. Now's the Time to Secure a Quote for your requirement of Omron 1.5mm PNP NC Inductive Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
