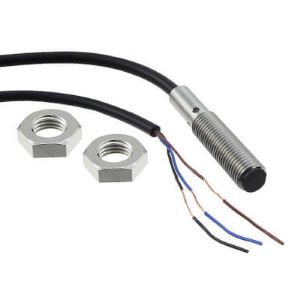

E2B-S08KN02-MC-B2: Omron 1,000 Hz Frequency Proximity Sensor
Technical Specifications of Omron 1,000 Hz Frequency Proximity Sensor E2B-S08KN02-MC-B2:
| Spec | Value |
|---|---|
| Size | M8 |
| Mounting Type | Non-flush | Unshielded |
| Output Type | PNP |
| Connection Method | M8 Connector 3-pin |
Omron 1,000 Hz Frequency Proximity Sensor E2B-S08KN02-MC-B2 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M8 |
| Mounting type | Non-flush | Unshielded |
| Sensing Distance | 2 mm |
| Connection method | M8 Connector 3-pin |
| Body Length | Short body |
| Response frequency | 1,000 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NC |
| Overall length | 44 mm |
| Thread length | 27 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Ask for the Pricing of Omron 1,000 Hz Frequency Proximity Sensor E2B-S08KN02-MC-B2 at unbeatable prices. Detailed Specifications of E2B-S08KN02-MC-B2 feature M8 diameter, Non-flush | Unshielded mounting, 2 mm Sensing Distance, M8 Connector 3-pin, Short body, 10 to 30 VDC power Supply, 3-wire PNP, NC output, IP67 degree of protection. Now's the Time to Secure a Quote for your requirement of Omron 1,000 Hz Frequency Proximity Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
