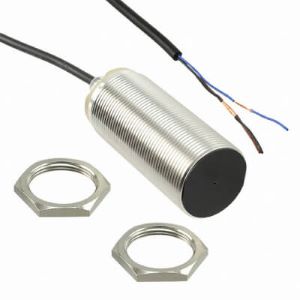

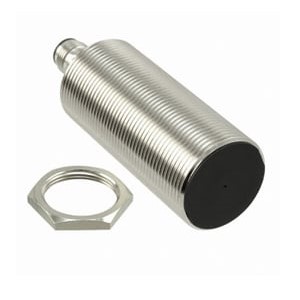

E2B-M30LS15-M1-C1: Omron E2B Cylindrical Proximity Sensor
Technical Specifications of Omron E2B Cylindrical Proximity Sensor E2B-M30LS15-M1-C1:
| Spec | Value |
|---|---|
| Size | M30 |
| Mounting Type | Flush | Shielded |
| Output Type | NPN |
| Connection Method | M12 Connector |
Omron E2B Cylindrical Proximity Sensor E2B-M30LS15-M1-C1 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M30 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 15 mm |
| Connection method | M12 Connector |
| Body Length | Long body |
| Response frequency | 250 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | NPN |
| Operation mode | NO |
| Overall length | 86 mm |
| Thread length | 66 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
IndMALL Automation Dealing offers Omron E2B Cylindrical Proximity Sensor E2B-M30LS15-M1-C1 at attractive prices. Key Technical Features of E2B-M30LS15-M1-C1 are M30 diameter, Flush | Shielded mounting, 15 mm Sensing Distance, M12 Connector, Long body, 10 to 30 VDC power Supply, 3-wire NPN, NO output, IP67 degree of protection. Navigate Your Needs with a Quote for your requirement of Omron E2B Cylindrical Proximity Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
