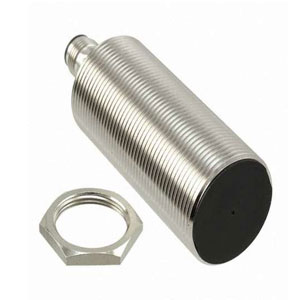

E2B-M30LS10-M1-B1: Omron 10 mm Proximity Sensor
Technical Specifications of Omron 10 mm Proximity Sensor E2B-M30LS10-M1-B1:
| Spec | Value |
|---|---|
| Size | M30 |
| Mounting Type | Flush | Shielded |
| Output Type | PNP |
| Connection Method | M12 Connector |
Omron 10 mm Proximity Sensor E2B-M30LS10-M1-B1 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M30 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 10 mm |
| Connection method | M12 Connector |
| Body Length | Long body |
| Response frequency | 400 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NO |
| Overall length | 86 mm |
| Thread length | 66 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Please speak to our Technical Engineer for Omron 10 mm Proximity Sensor E2B-M30LS10-M1-B1 at attractive prices. Technical Specs Summary of E2B-M30LS10-M1-B1 includes M30 diameter, Flush | Shielded mounting, 10 mm Sensing Distance, M12 Connector, Long body, 10 to 30 VDC power Supply, 3-wire PNP, NO output, IP67 degree of protection. Match Your Needs with a Quote for your requirement of Omron 10 mm Proximity Sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
