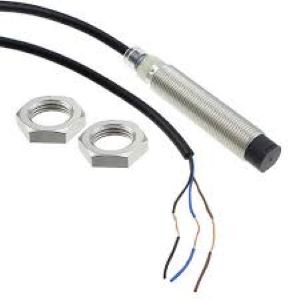

E2B-M30LN20-WP-B1 2M: Omron M30 Pre-wired Cable PNP Sensor
Technical Specifications of Omron M30 Pre-wired Cable PNP Sensor E2B-M30LN20-WP-B1 2M:
| Spec | Value |
|---|---|
| Size | M30 |
| Mounting Type | Non-flush | Unshielded |
| Output Type | PNP |
| Connection Method | Pre-wired PVC cable, 2m length |
Omron M30 Pre-wired Cable PNP Sensor E2B-M30LN20-WP-B1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M30 |
| Mounting type | Non-flush | Unshielded |
| Sensing Distance | 20 mm |
| Connection method | Pre-wired PVC cable, 2m length |
| Body Length | Long body |
| Response frequency | 100 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NO |
| Overall length | 82 mm |
| Thread length | 63 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Send Us an Email for Omron M30 Pre-wired Cable PNP Sensor E2B-M30LN20-WP-B1 2M at the lowest pricing. Technical Specs Summary of E2B-M30LN20-WP-B1 2M includes M30 diameter, Non-flush | Unshielded mounting, 20 mm Sensing Distance, Pre-wired PVC cable, 2m length, Long body, 10 to 30 VDC power Supply, 3-wire PNP, NO output, IP67 degree of protection. Capture the Best Deal with a Quote for your requirement of Omron M30 Pre-wired Cable PNP Sensor. Our promise: More affordable pricing and more personalized support than other Competitors.
