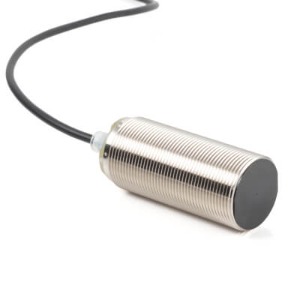

E2B-M30KS15-M1-B1: Omron 15mm Inductive Proximity Sensor
Technical Specifications of Omron 15mm Inductive Proximity Sensor E2B-M30KS15-M1-B1:
| Spec | Value |
|---|---|
| Size | M30 |
| Mounting Type | Flush | Shielded |
| Output Type | PNP |
| Connection Method | M12 Connector |
Omron 15mm Inductive Proximity Sensor E2B-M30KS15-M1-B1 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M30 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 15 mm |
| Connection method | M12 Connector |
| Body Length | Short body |
| Response frequency | 250 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NO |
| Overall length | 64 mm |
| Thread length | 44 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Send Us an Email for Omron 15mm Inductive Proximity Sensor E2B-M30KS15-M1-B1 with budget-friendly prices. Technical Attributes of E2B-M30KS15-M1-B1 includes M30 diameter, Flush | Shielded mounting, 15 mm Sensing Distance, M12 Connector, Short body, 10 to 30 VDC power Supply, 3-wire PNP, NO output, IP67 degree of protection. Now's the Time to Secure Quote for your requirement of Omron 15mm Inductive Proximity Sensor. Rest assured, our pricing and support outshine other Suppliers.
