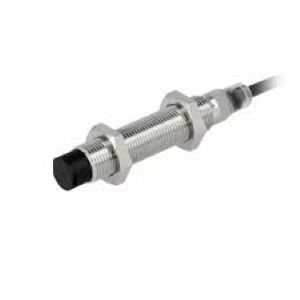

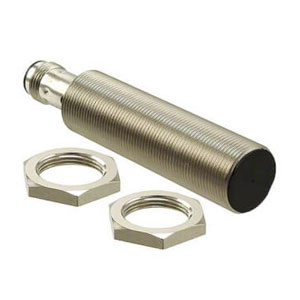

E2B-M18LS05-WP-C1 2M: Omron Shielded NPN Brass Sensor
Technical Specifications of Omron Shielded NPN Brass Sensor E2B-M18LS05-WP-C1 2M:
| Spec | Value |
|---|---|
| Size | M18 |
| Mounting Type | Flush | Shielded |
| Output Type | NPN |
| Connection Method | Pre-wired PVC cable, 2m length |
Omron Shielded NPN Brass Sensor E2B-M18LS05-WP-C1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M18 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 5 mm |
| Connection method | Pre-wired PVC cable, 2m length |
| Body Length | Long body |
| Response frequency | 600 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | NPN |
| Operation mode | NO |
| Overall length | 78 mm |
| Thread length | 58 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Give Us a Call for Omron Shielded NPN Brass Sensor E2B-M18LS05-WP-C1 2M with budget-friendly prices. Technical Attributes are E2B-M18LS05-WP-C1 2M include M18 diameter, Flush | Shielded mounting, 5 mm Sensing Distance, Pre-wired PVC cable, 2m length, Long body, 10 to 30 VDC power Supply, 3-wire NPN, NO output, IP67 degree of protection. Navigate Your Needs with a Quote for your requirement of Omron Shielded NPN Brass Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
