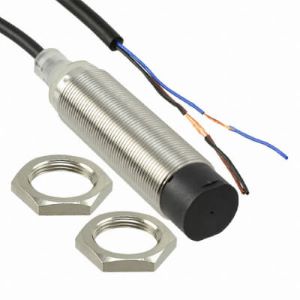

E2B-M18LN16-WP-C2 2M: Omron M18 Long Body Inductive Sensor
Technical Specifications of Omron M18 Long Body Inductive Sensor E2B-M18LN16-WP-C2 2M:
| Spec | Value |
|---|---|
| Size | M18 |
| Mounting Type | Non-flush | Unshielded |
| Output Type | NPN |
| Connection Method | Pre-wired PVC cable, 2m length |
Omron M18 Long Body Inductive Sensor E2B-M18LN16-WP-C2 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M18 |
| Mounting type | Non-flush | Unshielded |
| Sensing Distance | 16 mm |
| Connection method | Pre-wired PVC cable, 2m length |
| Body Length | Long body |
| Response frequency | 400 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | NPN |
| Operation mode | NC |
| Overall length | 78 mm |
| Thread length | 58 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Give Us a Call for Omron M18 Long Body Inductive Sensor E2B-M18LN16-WP-C2 2M at the lowest pricing. In-depth Technical Analysis of E2B-M18LN16-WP-C2 2M feature M18 diameter, Non-flush | Unshielded mounting, 16 mm Sensing Distance, Pre-wired PVC cable, 2m length, Long body, 10 to 30 VDC power Supply, 3-wire NPN, NC output, IP67 degree of protection. Elevate Your Project with a Quote for your requirement of Omron M18 Long Body Inductive Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
