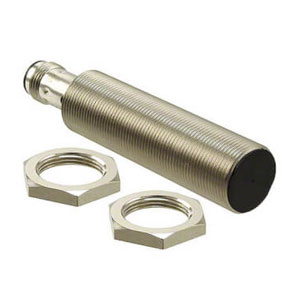

E2B-M18LN10-WP-B1 2M: Omron 58mm Proximity Sensor
Technical Specifications of Omron 58mm Proximity Sensor E2B-M18LN10-WP-B1 2M:
| Spec | Value |
|---|---|
| Size | M18 |
| Mounting Type | Non-flush | Unshielded |
| Output Type | PNP |
| Connection Method | Pre-wired PVC cable, 2m length |
Omron 58mm Proximity Sensor E2B-M18LN10-WP-B1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M18 |
| Mounting type | Non-flush | Unshielded |
| Sensing Distance | 10 mm |
| Connection method | Pre-wired PVC cable, 2m length |
| Body Length | Long body |
| Response frequency | 400 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NO |
| Overall length | 78 mm |
| Thread length | 58 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Send Us an Email for Omron 58mm Proximity Sensor E2B-M18LN10-WP-B1 2M at the lowest pricing. Technical Specs Summary of E2B-M18LN10-WP-B1 2M includes M18 diameter, Non-flush | Unshielded mounting, 10 mm Sensing Distance, Pre-wired PVC cable, 2m length, Long body, 10 to 30 VDC power Supply, 3-wire PNP, NO output, IP67 degree of protection. Capture the Best Deal with a Quote for your requirement of Omron 58mm Proximity Sensor. Our promise: More affordable pricing and more personalized support than other Competitors.
