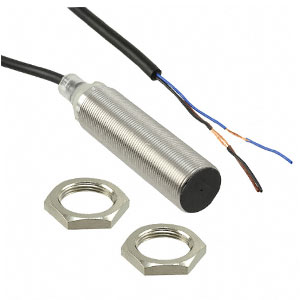

E2B-M18KN10-WP-B1 2M: Omron M18 PNP Proximity Sensor
Technical Specifications of Omron M18 PNP Proximity Sensor E2B-M18KN10-WP-B1 2M:
| Spec | Value |
|---|---|
| Size | M18 |
| Mounting Type | Non-flush | Unshielded |
| Output Type | PNP |
| Connection Method | Pre-wired PVC cable, 2m length |
Omron M18 PNP Proximity Sensor E2B-M18KN10-WP-B1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M18 |
| Mounting type | Non-flush | Unshielded |
| Sensing Distance | 10 mm |
| Connection method | Pre-wired PVC cable, 2m length |
| Body Length | Short body |
| Response frequency | 400 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NO |
| Overall length | 56 mm |
| Thread length | 36 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Mail Us for your needs in Omron M18 PNP Proximity Sensor E2B-M18KN10-WP-B1 2M with budget-friendly prices. The Main Technical Parameters of E2B-M18KN10-WP-B1 2M include M18 diameter, Non-flush | Unshielded mounting, 10 mm Sensing Distance, Pre-wired PVC cable, 2m length, Short body, 10 to 30 VDC power Supply, 3-wire PNP, NO output, IP67 degree of protection. Customize Your Experience with a Quote for your requirement of Omron M18 PNP Proximity Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
