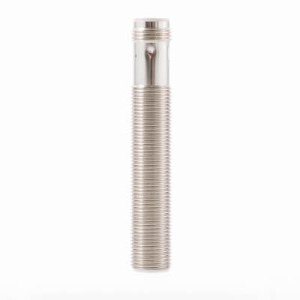

E2B-M12LS04-M1-C1: Omron NPN Proximity Sensor
Technical Specifications of Omron NPN Proximity Sensor E2B-M12LS04-M1-C1:
| Spec | Value |
|---|---|
| Size | M12 |
| Mounting Type | Flush | Shielded |
| Output Type | NPN |
| Connection Method | M12 Connector |
Omron NPN Proximity Sensor E2B-M12LS04-M1-C1 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 4 mm |
| Connection method | M12 Connector |
| Body Length | Long body |
| Response frequency | 1,000 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | NPN |
| Operation mode | NO |
| Overall length | 74 mm |
| Thread length | 54 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Ask for the Pricing of Omron NPN Proximity Sensor E2B-M12LS04-M1-C1 at unbeatable prices. Detailed Specifications of E2B-M12LS04-M1-C1 features M12 diameter, Flush | Shielded mounting, 4 mm Sensing Distance, M12 Connector, Long body, 10 to 30 VDC power Supply, 3-wire NPN, NO output, IP67 degree of protection. Now's the Time to Secure a Quote for your requirement of Omron NPN Proximity Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
