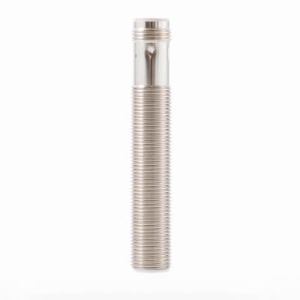

E2B-M12LS04-M1-B2: Omron M12 Connector Proximity Sensor
Technical Specifications of Omron M12 Connector Proximity Sensor E2B-M12LS04-M1-B2:
| Spec | Value |
|---|---|
| Size | M12 |
| Mounting Type | Flush | Shielded |
| Output Type | PNP |
| Connection Method | M12 Connector |
Omron M12 Connector Proximity Sensor E2B-M12LS04-M1-B2 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Flush | Shielded |
| Sensing Distance | 4 mm |
| Connection method | M12 Connector |
| Body Length | Long body |
| Response frequency | 1,000 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NC |
| Overall length | 74 mm |
| Thread length | 54 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Get A Quote for Omron M12 Connector Proximity Sensor E2B-M12LS04-M1-B2 at the best price. Here are the brief Technical Specifications of E2B-M12LS04-M1-B2 are M12 diameter, Flush | Shielded mounting, 4 mm Sensing Distance, M12 Connector, Long body, 10 to 30 VDC power Supply, 3-wire PNP, NC output, IP67 degree of protection. It's Time to get a Quote for your requirement of Omron M12 Connector Proximity Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
