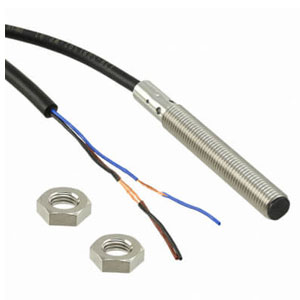

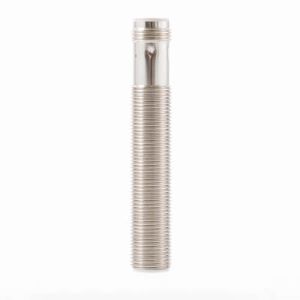

E2B-M12LN08-WP-C1 2M: Omron 10 mA Proximity Inductive Sensor
Technical Specifications of Omron 10 mA Proximity Inductive Sensor E2B-M12LN08-WP-C1 2M:
| Spec | Value |
|---|---|
| Size | M12 |
| Mounting Type | Non-flush | Unshielded |
| Output Type | NPN |
| Connection Method | Pre-wired PVC cable, 2m length |
Omron 10 mA Proximity Inductive Sensor E2B-M12LN08-WP-C1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Non-flush | Unshielded |
| Sensing Distance | 8 mm |
| Connection method | Pre-wired PVC cable, 2m length |
| Body Length | Long body |
| Response frequency | 800 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | NPN |
| Operation mode | NO |
| Overall length | 70 mm |
| Thread length | 53 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Obtain a Quote for Omron 10 mA Proximity Inductive Sensor E2B-M12LN08-WP-C1 2M at attractive prices. Engineering Specifications of E2B-M12LN08-WP-C1 2M detail M12 diameter, Non-flush | Unshielded mounting, 8 mm Sensing Distance, Pre-wired PVC cable, 2m length, Long body, 10 to 30 VDC power Supply, 3-wire NPN, NO output, IP67 degree of protection. Navigate Your Needs with a Quote for your requirement of Omron 10 mA Proximity Inductive Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
