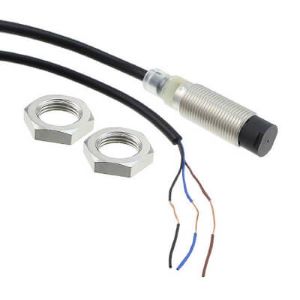

E2B-M12KN05-M1-B2: Omron M12 PNP Brass Sensor
Technical Specifications of Omron M12 PNP Brass Sensor E2B-M12KN05-M1-B2:
| Spec | Value |
|---|---|
| Size | M12 |
| Mounting Type | Non-flush | Unshielded |
| Output Type | PNP |
| Connection Method | M12 Connector |
Omron M12 PNP Brass Sensor E2B-M12KN05-M1-B2 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Non-flush | Unshielded |
| Sensing Distance | 5 mm |
| Connection method | M12 Connector |
| Body Length | Short body |
| Response frequency | 800 Hz |
| Power supply | 10 to 30 VDC |
| Current consumption | 10 mA max. |
| Output type | PNP |
| Operation mode | NC |
| Overall length | 51 mm |
| Thread length | 31 mm |
| Material housing | Brass, nickel plated |
| Degree of protection (IP) | IP67 |
Reach Us by Email for Omron M12 PNP Brass Sensor E2B-M12KN05-M1-B2 part no: E2B-M12KN05-M1-B2: Omron M12 PNP Brass Sensor at attractive prices. In-depth Technical Analysis of E2B-M12KN05-M1-B2 feature M12 diameter, Non-flush | Unshielded mounting, 5 mm Sensing Distance, M12 Connector, Short body, 10 to 30 VDC power Supply, 3-wire PNP, NC output, IP67 degree of protection. Now's the Time to Secure a Quote for your requirement of Omron M12 PNP Brass Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
