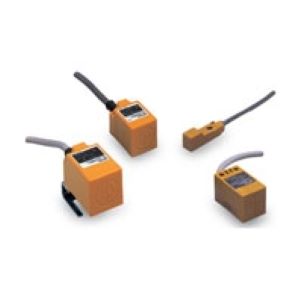

Omron TL-N / -Q Rectangular Proximity Sensors
Omron TL-N / -Q series of Rectangular Proximity Sensors is a comprehensive range meticulously designed to meet varied industrial requirements. These sensors offer precise and reliable object detection solutions with a sensing distance of up to 10 mm. Available in various cable lengths, including 10m, 2m, and 5m, these sensors are highly adaptable to different installation needs.
The inclusion of Normally Open (NO) NPN outputs, they ensure seamless compatibility with a wide array of control systems. Omron’s commitment to quality and reliability is evident in the design, with each sensor ensuring a ±10% sensing distance accuracy.
Omron TL-N / -Q Proximity Sensors
Model No |
Image |
Sensing Distance |
Installation |
Output |
Connection |
|---|---|---|---|---|---|
| TL-N10ME1 2M |  |
10 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NO | Pre-Wired Cable |
| TL-N10ME2 2M |  |
10 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NC | Pre-Wired Cable |
| TL-N10MF1 2M |  |
10 mm ±10% | Non-Flush | Unshield | DC 3-wire, PNP/NO | Pre-Wired Cable |
| TL-N10MY1 2M |  |
10 mm ±10% | Non-Flush | Unshield | AC 2-wire, NO | Pre-Wired Cable |
| TL-N12MD1 2M |
 |
12 mm ±10% | Non-Flush | Unshield | DC 2-wire, NO | Pre-Wired Cable |
| TL-N12MD2 2M |  |
12 mm ±10% | Non-Flush | Unshield | DC 2-wire, NC | Pre-Wired Cable |
| TL-N20MD1 2M |  |
20 mm ±10% | Non-Flush | Unshield | DC 2-wire, NO | Pre-Wired Cable |
| TL-N20ME1 2M |  |
20 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NO | Pre-Wired Cable |
| TL-N20ME2 2M |  |
20 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NC | Pre-Wired Cable |
| TL-N20MY1 2M |  |
20 mm ±10% | Non-Flush | Unshield | AC 2-wire, NO | Pre-Wired Cable |
| TL-N20MY2 2M |  |
20 mm ±10% | Non-Flush | Unshield | AC 2-wire, NC | Pre-Wired Cable |
| TL-N5ME1 2M |  |
5 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NO | Pre-Wired Cable |
| TL-N5MY1 2M |  |
5 mm ±10% | Non-Flush | Unshield | AC 2-wire, NO | Pre-Wired Cable |
| TL-N7MD1 2M |  |
7 mm ±10% | Non-Flush | Unshield | DC 2-wire, NO | Pre-Wired Cable |
| TL-Q2MC1 2M |  |
2 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NO | Pre-Wired Cable |
| TL-Q5MB1 2M |  |
5 mm ±10% | Non-Flush | Unshield | DC 3-wire, PNP/NO | Pre-Wired Cable |
| TL-Q5MC1 2M |  |
5 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NO | Pre-Wired Cable |
| TL-Q5MC2 2M |  |
5 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NC | Pre-Wired Cable |
| TL-Q5MD1 2M |  |
5 mm ±10% | Non-Flush | Unshield | DC 2-wire, NO | Pre-Wired Cable |
| TL-Q5MD2 2M |  |
5 mm ±10% | Non-Flush | Unshield | DC 2-wire, NC | Pre-Wired Cable |
| TL-Q5MC15 2M |  |
5 mm ±10% | Non-Flush | Unshield | DC 3-wire, NPN/NO | Pre-Wired Cable |
