Omron SMPS: Power Supply & Switch Mode Range

Range of Omron SMPS

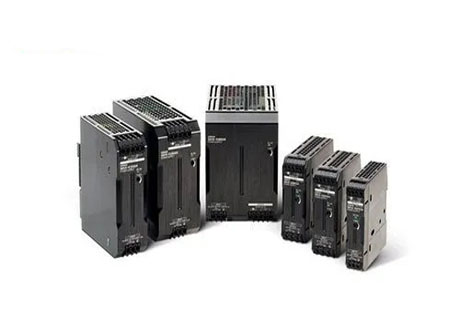

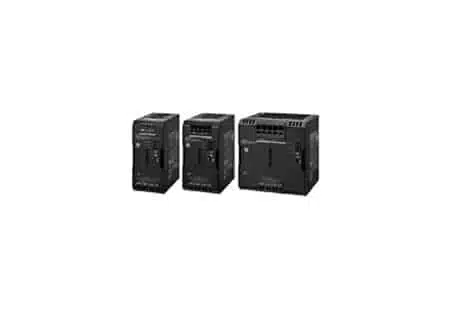

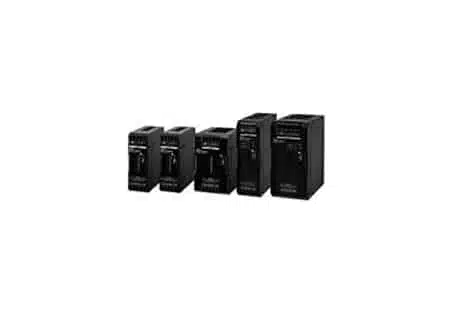

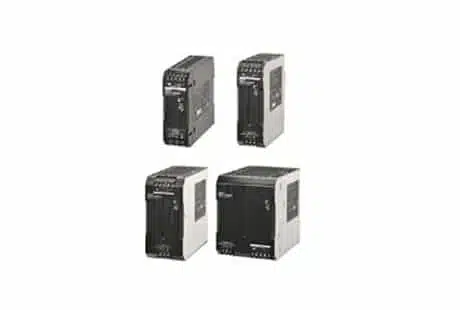

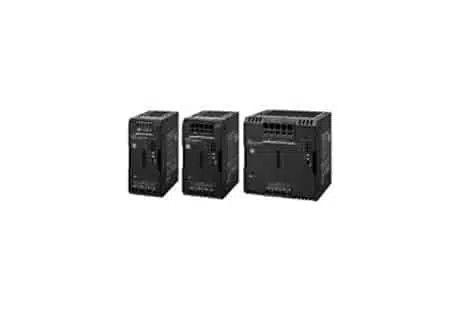

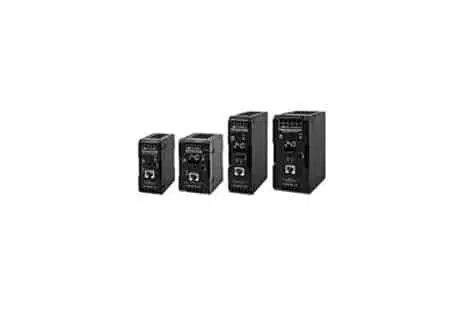

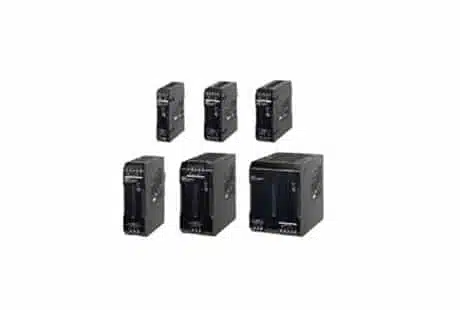

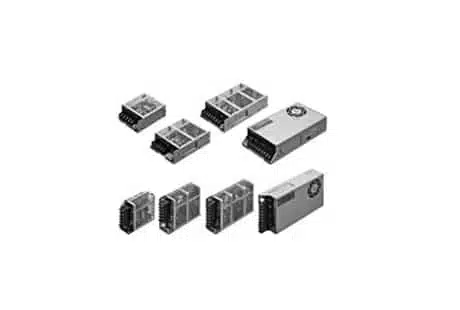

Omron SMPS, or Switched-Mode Power Supplies, come in various models and capacities. They provide different amounts of power to suit different needs. This means they work for a wide range of applications and industries.

The power output of Omron SMPS units can vary a lot. Some are designed for smaller tasks like charging a phone, while others might power large machines.

Omron offers SMPS units that can handle various input voltages. They work in different countries and setups, making them versatile for global use.

In essence, Omron SMPS units come in different types. They cater to a wide range of power needs, ensuring reliable and efficient power conversion in various situations.

Three Modes of SMPS

Understanding SMPS requires knowing its three basic modes: buck, boost, and buck-boost. Each mode serves a specific purpose in power management.

The “Buck” mode reduces voltage. It takes a higher voltage and steps it down to a lower level while increasing the current.

The “Boost” mode increases the voltage. It steps up the input voltage to a higher level while reducing the current.

The “Buck-Boost” mode can either increase or decrease voltage. It is versatile, adjusting the output voltage as needed, either up or down.

In summary, SMPS has three key modes: Buck for lowering voltage, Boost for raising it, and Buck-Boost for both, adapting to various power needs.

Uses of SMPS (Switch-Mode Power Supply)

The SMPS, or Switch-Mode Power Supply, has important uses in many electrical devices. It manages and provides power in an efficient and safe way.

In computers, an SMPS provides stable power to all the parts. This ensures that the computer runs smoothly without wasting electricity.

In chargers, like those for laptops or phones, it converts power. This means it changes the electricity from the wall into a type that can safely charge the battery.

For LED lights, an SMPS helps control brightness. It makes sure the lights shine steadily without flickering or getting too hot.

In essence, an SMPS is used to give safe and steady power. It supports computers, chargers, lights, and many other devices, ensuring they work properly and safely.

An SMPS, or Switch-Mode Power Supply, changes AC power to DC power efficiently. It uses a few steps to make this important change.

First, the SMPS takes the AC power, which moves back and forth. AC power is the type that comes from our wall outlets.

It then uses a rectifier, which is like a gate. The rectifier only allows the power to move in one direction, creating pulsating DC.

After that, a filter smooths out the pulsating DC. This removes the bumps and creates a smoother flow of power.

Finally, a regulator ensures the power stays at the right level. It adjusts the power, making sure it’s not too high or too low.

In short, an SMPS changes AC to DC by directing, smoothing, and regulating the power, providing steady and safe electricity for devices.
