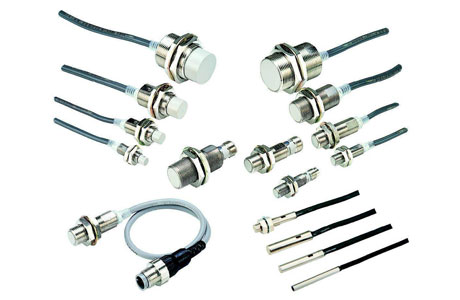

Omron E2E Proximity Sensor: Small-diameter Proximity Sensors
The Omron E2E Proximity Sensor, available at IndMALL Automation, offers reliable detection across varied sizes and types. These sensors have a sensing distance that ranges from 0.8 mm to 4 mm and are adept at detecting ferrous metals. They boast an impressive response frequency between 2 kHz to 5 kHz, powered by a voltage supply of 10 to 30 VDC.
Designed for durability, they are IP67-rated and resistant to temperature, vibration, and shock. Whether shielded or unshielded, these sensors ensure precision in industrial applications. Explore our range to find the perfect fit for your needs.
E2E Proximity Sensors
Model No |
Image |
Sensing Distance |
Installation |
Output |
Connection |
|---|---|---|---|---|---|

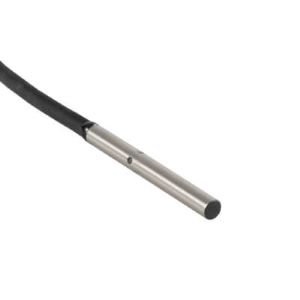

| E2E-C03SR8-WC-C1 2M |  |
0.8mm, 3 dia | Flush | Shield | NPN | PVC Pre-Wired |
| E2E-C03SR8-WC-B1 2M |  |
0.8mm, 3 dia | Flush | Shield | PNP | PVC Pre-Wired |
People Also Ask
What are the key specifications of the Omron E2E Proximity Sensor?
Omron E2E Proximity Sensor Key Specifications:
- Sizes Available: 3 dia., 4 dia., 5.4 dia., 6.5 dia., M4, and M5.
- Types: Shielded and Unshielded options.
- Sensing Distance: Ranges from 0.8 mm to 4 mm, depending on the model, with an approximate variance of ±10%.
- Detectable Object: Ferrous metal (sensing distance decreases with non-ferrous metal).
- Standard Sensing Object: Varies based on the model, with sizes like Iron, 3×3×1 mm, Iron, 12×12×1 mm, and so on.
- Response Frequency: Varies per model, with frequencies like 5 kHz, 3.5 kHz, 4 kHz, etc.
- Power Supply Voltage: 10 to 30 VDC (including 10% ripple (p-p)).
- Current Consumption: 10 mA max.
- Operation Mode: B1/B2: PNP open collector, C1/C2: NPN open collector. Variants for normally open and normally closed models.
- Ambient Conditions: Operates in temperatures ranging from -25 to 70°C and humidity from 35% to 95% (with no condensation).
- Temperature and Voltage Influence: Varies, but includes specifications such as ±15% max. of sensing distance at 23°C within the temperature range of -25 to 70°C.
- Connecting Methods: Options include Pre-wired Models, M8 Pre-wired Connector Models, and M8 Connector Models.
What objects can E2E small Proximity Sensor detect?
The E2E small Proximity Sensor primarily detects ferrous metals. However, its sensing distance decreases with non-ferrous metals. It’s designed to identify specific standard sensing objects, such as iron pieces in various sizes, depending on the model.
What are the different diameters available for the Omron E2E Proximity Sensor?
Omron E2E Proximity Sensor comes in various diameters including 3mm, 4mm, 5.4mm, 6.5mm, and others. Each diameter offers shielded and unshielded variants, suitable for different applications.
It’s essential to choose the correct diameter based on the specific sensing requirements and installation space.
How does Omron E2E proximity sensor work?
The Omron E2E proximity sensor detects the presence of ferrous metals without physical contact. Using electromagnetic fields, the sensor identifies metal objects within its sensing distance.
When an object is detected, the sensor produces an output signal. The E2E series offers both shielded and unshielded variants for diverse applications.
What is the power supply voltage for the e2e small proximity sensor
The power supply voltage for the Omron E2E small proximity sensor is between 10 to 30 VDC, accommodating a 10% ripple (p-p).
For all your Omron E2E Proximity Sensor requirements, trust IndMALL Automation.
