Key Takeaway
To use a photoelectric sensor, install it in the desired location. Align the transmitter and receiver for through-beam sensors, or position reflective and diffuse sensors for optimal detection. Once positioned, connect the sensor to a power source, typically wiring the brown and blue wires to positive and negative terminals.
Next, adjust the sensitivity to suit your application. Test by placing objects in the sensor’s path to ensure proper response. Make adjustments as needed to optimize detection and performance for your specific use case.
Understanding the Basic Functions of a Photoelectric Sensor
At its core, a photoelectric sensor works by emitting a light beam from an emitter and detecting the reflection or interruption of that beam through a receiver. When an object comes into the sensor’s field, the light beam is either interrupted or reflected back to the sensor, triggering a signal. This non-contact detection method allows it to work with different types of materials, shapes, and sizes.

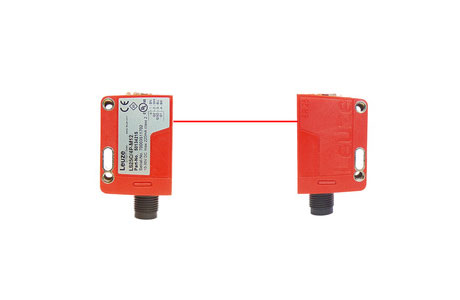

Photoelectric sensors come in different configurations, such as through-beam, retro-reflective, and diffuse. Each has its unique working principle, but the goal remains the same: reliable and accurate detection. For example, a through-beam sensor has the emitter and receiver placed opposite each other, detecting when an object breaks the beam. In contrast, a diffuse sensor uses the object itself to reflect light back to the receiver.
Step-by-Step Guide to Setting Up a Photoelectric Sensor
Setting up a photoelectric sensor requires careful attention to detail. To begin, select the correct sensor type for your application. For instance, if you’re working with transparent materials, a retro-reflective sensor might be ideal. Once you’ve chosen the right sensor, follow these steps:
Mounting: Secure the sensor in a stable location where it has a clear line of sight to detect objects. Ensure the sensor is aligned correctly, particularly for through-beam sensors, as misalignment can prevent proper detection.
Wiring: Connect the power supply to the sensor according to the manufacturer’s instructions. Most photoelectric sensors have a simple three-wire setup: one for power, one for ground, and one for output. Make sure the power supply voltage matches the sensor’s requirements.
Calibration: After wiring, you’ll need to adjust the sensor’s sensitivity. This can usually be done using a small dial or button on the sensor. Adjust it until the sensor reliably detects objects without being triggered by environmental noise or background objects.
Testing: Place objects in the sensor’s detection range and ensure it accurately detects them. Make adjustments as needed to improve precision and reliability.
Final Checks: Once the sensor is mounted, wired, calibrated, and tested, secure all connections and ensure everything is operating smoothly before starting full operation.
Setting up the sensor correctly from the start will prevent many issues later on and ensure your system works seamlessly.
Common Applications Where Photoelectric Sensors Are Used
Photoelectric sensors are incredibly versatile and are used across various industrial applications. One of the most common uses is on conveyor belts, where the sensor detects products moving along the belt and triggers actions such as counting, sorting, or packaging. In automated warehouses, photoelectric sensors play a critical role in inventory management by detecting pallets and products as they move through the system.
In packaging industries, these sensors are used to detect transparent plastic films or glass containers, ensuring items are packed and sealed correctly. Another key application is in robotics, where photoelectric sensors help guide robot arms by detecting the presence of objects.
Photoelectric sensors are also essential in safety applications, such as monitoring the opening and closing of safety doors in industrial machines. If the sensor detects an obstruction, the machine will automatically stop, preventing accidents and ensuring compliance with safety standards.
Their ability to detect objects of different sizes, shapes, and materials without direct contact makes them invaluable across many industries, from automotive to food processing. Wherever accurate object detection is needed, photoelectric sensors are a reliable choice.
Adjusting Sensor Settings for Optimal Performance
Once the photoelectric sensor is set up, optimizing its performance is the next crucial step. The key to this lies in fine-tuning the sensor’s settings, especially its sensitivity. Sensors that are too sensitive may detect unwanted objects or background noise, while sensors that aren’t sensitive enough may miss the objects they are supposed to detect.
Start by adjusting the sensor’s detection range. This can usually be done via a dial or adjustment screw on the sensor. Increase the sensitivity gradually until the sensor reliably detects the desired object but ignores background interference. Be cautious not to over-adjust, as this can lead to false detections.
Next, consider adjusting the response time of the sensor. For fast-moving objects, a shorter response time ensures the sensor reacts quickly. However, for slower or stationary objects, a longer response time might be more appropriate to avoid unnecessary triggers.
If your sensor is located in a harsh environment with dust, moisture, or vibrations, it’s worth considering additional adjustments or protective housing. Some sensors come with built-in filters to reduce interference from environmental factors. Fine-tuning these settings ensures your photoelectric sensor performs optimally in any industrial environment.
Troubleshooting and Maintaining the Sensor for Long-Term Use
Like any equipment in an industrial environment, photoelectric sensors require regular maintenance and occasional troubleshooting to ensure they continue to function effectively. Common issues include false triggers, failure to detect objects, or inconsistent performance.
If your sensor isn’t detecting objects, start by checking the alignment. Even a slight misalignment can cause detection failures, particularly in through-beam sensors. Another common issue is dirt or dust on the sensor’s lens, which can block or scatter the light beam. Regular cleaning of the sensor’s lens can prevent this.
For sensors exposed to high levels of vibration, check for loose connections or wiring damage. If the sensor is experiencing false triggers, recalibrate its sensitivity settings and ensure it is not being affected by reflective surfaces or background interference.
Finally, ensure you conduct periodic checks on the wiring and electrical connections. Over time, vibrations or environmental factors can loosen connections, leading to inconsistent performance. By maintaining and troubleshooting the sensor regularly, you can extend its lifespan and ensure reliable performance for the long term.
Conclusion
How to Effectively Use a Photoelectric Sensor for Various Industrial Applications
Photoelectric sensors are invaluable tools in industrial automation, offering reliable, non-contact detection of objects across a wide range of applications. By understanding their basic functions, setting them up correctly, adjusting their settings, and maintaining them properly, you can maximize their performance and longevity. Whether you’re working in packaging, robotics, or safety applications, these sensors provide accuracy and reliability when used effectively.
Remember, proper calibration and regular maintenance are key to keeping your photoelectric sensor functioning optimally, reducing downtime, and ensuring your systems run smoothly.
