Key Takeaway

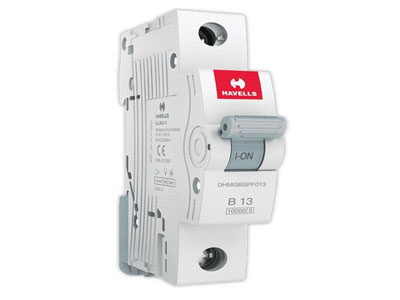

An MCB (Miniature Circuit Breaker) is used to protect electrical circuits from overloads and short circuits. It automatically cuts off the power when the current exceeds a safe limit, preventing damage to appliances, wiring, and the overall system. Unlike traditional fuses, MCBs can be easily reset after tripping, making them more convenient and reliable.
MCBs are essential for ensuring electrical safety in homes, offices, and industries. They prevent hazards like electrical fires caused by faulty circuits or excess current. By acting as a safeguard, MCBs ensure that your electrical systems run smoothly and efficiently. Their compact size and ease of use make them a standard component in modern electrical setups.
The Role of MCB in Electrical Circuit Protection
An MCB plays an essential role in electrical circuit protection by safeguarding circuits against overcurrents. These overcurrents can occur due to overload (when the demand on the circuit exceeds its rated capacity) or short circuits (when unintended paths are formed, causing an excess current to flow).
When an overload or short circuit happens, the MCB automatically trips, cutting off the power to the circuit. This automatic disconnection prevents wires from overheating, reducing the risk of fire or damage to the equipment connected to the circuit. The MCB ensures that electrical systems remain safe and functional by interrupting current flow only when it exceeds safe limits.
In many modern electrical systems, MCBs replace older protection devices like fuses, offering enhanced safety features. Their quick tripping action, coupled with the ability to reset after tripping, makes them a crucial part of every electrical installation.
How MCB Prevents Overload and Short Circuit Issues
The two primary causes of electrical faults are overloads and short circuits. Let’s look at how an MCB functions to prevent both of these potentially hazardous conditions:
1. Preventing Overload:
An overload occurs when too many electrical devices draw more current than the circuit’s design can handle. When this happens, the circuit becomes overheated, and wires may burn or melt, posing a significant risk of fire. An MCB is equipped with a thermal trip mechanism, which responds to excess heat caused by the overload. When the MCB detects that the current flow exceeds the safe limit for a certain period, it trips and disconnects the circuit, stopping the current flow.
This action protects the wiring, appliances, and connected equipment from potential damage. In essence, the MCB ensures that the current draw stays within safe limits, preventing the circuit from becoming overloaded.
2. Preventing Short Circuits:
A short circuit occurs when a low-resistance path is created between two conductors, leading to a massive surge in electrical current. This surge can cause extreme damage to electrical equipment and increase the risk of fires. When a short circuit happens, the MCB’s electromagnetic trip mechanism responds almost instantly, disconnecting the power supply. The MCB detects the surge in current and trips in milliseconds, preventing damage to the system.
Thus, whether it’s an overload or a short circuit, the MCB helps to protect the electrical system by sensing excess current and responding quickly to prevent long-term damage or hazardous situations.
You May Like to Read
Advantages of MCB Over Traditional Fuses
Miniature Circuit Breakers (MCBs) have largely replaced fuses in modern electrical systems, and for good reason. While fuses were the standard protection device for many years, MCBs offer several significant advantages that make them more efficient and reliable for electrical circuit protection.
1. Quick Reset:
One of the most notable advantages of an MCB over a fuse is its ability to reset. After an MCB trips due to an overload or short circuit, it can easily be reset by switching it back on. This eliminates the need for replacement, unlike a fuse, which must be replaced once it blows. This not only saves time but also reduces operational costs in industrial and commercial settings.
2. Greater Precision:
MCBs provide more precise control over electrical protection. They can be adjusted to specific current ratings, offering customized protection for various devices and systems. Fuses, on the other hand, often have more generalized protection and are not as adaptable to varying current levels. This precision ensures better protection for sensitive electronic equipment.
3. Faster Response Time:
MCBs react faster to electrical faults compared to fuses. Fuses may take longer to blow, and the delay can cause damage to the equipment or wiring before the circuit is interrupted. MCBs, with their electromagnetic and thermal mechanisms, respond in a fraction of a second, minimizing the risk of harm or equipment damage.
4. Cost-Effective and Durable:
Although the initial cost of an MCB may be higher than a fuse, it is more cost-effective in the long run. The fact that MCBs can be reset and reused rather than replaced makes them a more durable and economical solution. Additionally, MCBs have a longer lifespan, providing greater value over time.
In conclusion, MCBs provide better protection, are more economical over time, and offer greater reliability and flexibility compared to traditional fuses.
Applications of MCB in Residential, Commercial, and Industrial Settings
MCBs are highly versatile and can be used in a variety of settings, from homes to large industrial complexes. Each setting presents its own unique requirements, and MCBs are designed to meet those needs efficiently.
1. Residential Applications:
In homes, MCBs are typically used to protect electrical circuits connected to lighting, appliances, and outlets. They safeguard households from overloads, short circuits, and potential electrical fires. MCBs offer a convenient and safe way to manage home electrical systems, ensuring that the circuit is cut off in case of a fault. Many residential electrical panels today use MCBs as a primary safety feature to protect the entire household from potential electrical hazards.
2. Commercial Applications:
In commercial settings, where the electrical load is higher, MCBs are used to protect lighting, HVAC systems, office equipment, and machinery. For example, MCBs are often installed in distribution boards to ensure the protection of various circuits within office buildings, retail stores, or shopping malls. These systems also help manage the electrical load, providing enhanced safety and preventing system breakdowns.
3. Industrial Applications:
In industries, MCBs are vital in distribution boards to protect larger, more complex machinery and systems. They help prevent catastrophic damage to heavy equipment and motors, which can be costly to repair or replace. In factories and plants, MCBs also ensure that electrical systems remain operational without compromising safety. Given the high-power demands in industries, MCBs are available in varying sizes and configurations to meet specific load requirements.
In conclusion, whether in homes, commercial settings, or industrial applications, MCBs provide critical protection against overcurrent situations, safeguarding both equipment and personnel from electrical hazards.
Enhancing Electrical Safety with Modern MCB Designs
As technology continues to evolve, so do the designs of electrical protection devices. Modern MCBs come equipped with advanced features that enhance electrical safety and improve the performance of electrical systems. Let’s explore some of the key innovations in MCB designs:
1. Smart MCBs:
With the advent of smart technology, some MCBs now come with built-in communication systems that allow for remote monitoring and control. These smart MCBs can be integrated into a building management system (BMS), enabling users to monitor electrical parameters, such as current levels, remotely. They can also send notifications if an overload or fault occurs, improving response time.
2. Enhanced Tripping Mechanisms:
Modern MCBs have more sensitive and accurate tripping mechanisms. For example, some MCBs now incorporate thermal-magnetic trip units that allow for faster detection of overloads and short circuits. This ensures quicker disconnection and prevents damage to the electrical system.
3. Arc Fault Detection:
One of the latest advancements in MCB technology is the inclusion of arc fault detection. Arc faults can lead to electrical fires, and modern MCBs are now capable of detecting arcing conditions and disconnecting the power before a fire can start. This feature significantly enhances safety, particularly in environments with older wiring or sensitive equipment.
4. Higher Current Ratings and Compact Designs:
Modern MCBs are designed to handle higher current ratings while being more compact. This allows for efficient protection in high-demand systems, such as those found in industrial applications. The design improvements ensure that more protection can be achieved without occupying too much space.
In summary, modern MCB designs are increasingly sophisticated, incorporating smart technology, arc fault detection, and improved safety features, making them even more effective at preventing electrical hazards and improving overall system reliability.
Conclusion
To wrap up, MCBs play an indispensable role in protecting electrical systems across various settings. Their ability to prevent overload and short circuits ensures that electrical installations remain safe and efficient. Compared to traditional fuses, MCBs offer advantages such as faster response time, precision, and cost savings through their resettable nature. From residential homes to large industrial settings, MCBs are essential for safeguarding circuits and equipment, providing the reliability and safety needed for modern electrical systems. With the advent of modern designs, MCBs continue to evolve, offering enhanced features that improve both safety and performance across a range of applications.
By understanding why MCBs are used, you can ensure that the electrical systems you work with remain safe, reliable, and efficient.
