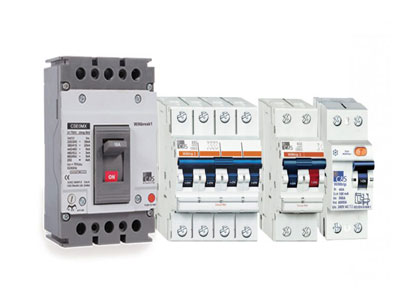

Key Takeaway
For a 2-ton air conditioner (AC), the recommended MCB (Miniature Circuit Breaker) size is 20A. A 2-ton AC typically requires around 9-10 amps of current, and a 20A MCB provides enough capacity to handle this without tripping under normal conditions.
It’s important to choose an MCB with the correct breaking capacity, usually 6kA for residential use. The MCB will protect the AC from overloads and short circuits, ensuring the safety of the electrical system. A 20A MCB is commonly used for air conditioners in homes and offices, as it provides adequate protection while allowing for safe operation. Always check the manufacturer’s guidelines to ensure the correct MCB size for your specific AC model.
Understanding the Electrical Load of a 2 Ton AC
Before selecting an MCB (Miniature Circuit Breaker) for a 2-ton air conditioner, it’s crucial to understand the electrical load it requires. A 2-ton air conditioner typically draws a significant amount of power to cool an area efficiently. To put it into perspective, a 2-ton AC unit usually consumes around 2,000 to 2,400 watts of electrical power. However, the electrical load can vary based on the unit’s energy efficiency and operating conditions.
The load of an AC is not just about the power consumption in watts; it also involves the starting current. When the compressor kicks in, it demands a much higher current for a brief period. This surge in current, known as inrush current, can be several times higher than the running current. An MCB must be capable of handling this surge without tripping unnecessarily.
It’s also important to factor in the efficiency of the air conditioner and the specific wiring and electrical setup in the building. Incorrect calculations could lead to under or over-sizing the MCB, potentially leading to frequent tripping or insufficient protection. Understanding the electrical load of the AC ensures that the MCB you select will be adequately rated to protect your system while allowing it to operate efficiently.
Key Factors in Selecting the Right MCB for an AC
Selecting the correct MCB for an air conditioner involves several factors. The MCB is the first line of defense against electrical faults, preventing overloads and short circuits, and it plays a vital role in the safety of your AC system.
1. Current Rating:
The MCB must have an appropriate current rating based on the air conditioner’s power consumption. For a 2-ton AC, the typical operating current can range between 8 to 12 amps, depending on the unit’s power rating and efficiency. Selecting an MCB with a lower rating than required could lead to unnecessary tripping, while a higher rating could compromise the protection of the circuit.
2. Type of MCB:
There are different types of MCBs based on their trip characteristics, such as Type B, Type C, and Type D. For air conditioning systems, a Type C MCB is commonly recommended. It allows for higher inrush currents, which is necessary to handle the compressor’s initial start-up load. A Type B MCB would be too sensitive, tripping too easily, while a Type D MCB is better suited for larger industrial systems.
3. Trip Curve:
The trip curve of an MCB indicates how quickly it will trip in the event of an overload or short circuit. For an AC, which has high inrush currents, selecting an MCB with the correct trip curve ensures that the breaker will not trip during normal operation, but will still offer protection against prolonged overloads.
4. Voltage Rating:
Ensure the voltage rating of the MCB matches the voltage requirements of your AC system. For standard home ACs, this is typically 230V or 240V, but industrial systems may require MCBs rated for higher voltages.
The right combination of current rating, type, trip curve, and voltage rating is critical in ensuring your AC’s safety and performance. An MCB that is too weak or too strong for the system can lead to frequent failures or inadequate protection.
You May Like to Read
Calculating the Correct MCB Rating for a 2 Ton AC
To determine the correct MCB rating for a 2-ton air conditioner, it’s essential to consider both the running current and the inrush current.
1. Determining Running Current:
First, you need to calculate the running current. A 2-ton AC typically consumes between 2,000 to 2,400 watts of power. Using the formula
= / , where
is the current,
is the power in watts, and
is the voltage (usually 230V for home systems), we get:
=2000/230≈8.7 amps
This is the average running current your AC will consume during normal operation. Based on this calculation, an MCB with a current rating of at least 10A is recommended to provide sufficient protection.
2. Considering Inrush Current:
The next step is to account for the inrush current. Air conditioners, especially those with compressors, draw a much higher current when they start. This surge can be 4 to 6 times the normal running current. For a 2-ton AC with a running current of 8.7A, the inrush current could range between 35A to 52A.
To prevent the MCB from tripping during startup, it’s necessary to choose one with a higher rating that can withstand this surge. A Type C MCB, which allows for higher inrush currents, is typically used for air conditioners and other devices with motors.
3. Selecting the Right MCB:
Based on the running current (8.7A) and the inrush current (up to 50A), an MCB with a current rating of 10A to 16A is usually ideal for a 2-ton air conditioner. This ensures that the MCB can handle the startup surge without tripping, while still providing protection during normal operation and in case of faults.
4. Additional Considerations:
It’s also a good idea to factor in the wiring size and the length of the cable running to the AC. If the distance is long, you may need to account for voltage drop and choose an MCB with a slightly higher rating.
Types of MCBs Suitable for Air Conditioners
When selecting an MCB for an air conditioner, you need to consider the type of MCB that suits the electrical characteristics of your system. The three main types of MCBs are Type B, Type C, and Type D. Let’s look at each one and its suitability for air conditioners:
1. Type B MCB:
This MCB trips between 3 to 5 times the rated current and is generally used for circuits with low inrush currents, like lighting or household appliances. However, for air conditioners, especially those with motors that have high startup currents, a Type B MCB would trip unnecessarily. Therefore, Type B MCBs are not recommended for AC units.
2. Type C MCB:
Type C MCBs are the most commonly used type for air conditioners. They trip between 5 to 10 times the rated current, which allows them to handle the high inrush currents that AC compressors typically produce during startup. They strike a good balance, providing protection without unnecessarily tripping during normal operations.
3. Type D MCB:
Type D MCBs are designed for applications with very high inrush currents, like industrial equipment or large motors. While they can handle massive surge currents, they are not typically needed for standard residential air conditioners, as they allow for larger surges than most air conditioners would produce.
In conclusion, Type C MCBs are the best option for 2-ton air conditioners, as they can handle both the running current and inrush current efficiently.
Common Mistakes When Choosing an MCB for Air Conditioners
When selecting an MCB for an air conditioner, there are several common mistakes that can lead to either insufficient protection or unnecessary tripping of the breaker. Let’s review some of these pitfalls:
1. Choosing an MCB with an Inadequate Current Rating:
One of the most common mistakes is selecting an MCB with a too-low current rating. If the MCB rating is too low for the AC’s current draw, it will trip frequently, interrupting the air conditioning cycle and potentially causing damage to the system. Always ensure that the MCB’s rating can accommodate both the running and surge current requirements of the AC.
2. Ignoring Inrush Current:
Another mistake is neglecting the inrush current when choosing the MCB. Since air conditioners experience a significant surge in current during startup, it’s crucial to select an MCB that can handle this surge. If the MCB is too sensitive, it will trip every time the compressor starts, even though this is a normal part of the operation.
3. Selecting the Wrong MCB Type:
Choosing the wrong type of MCB is another mistake. Type B MCBs, while suitable for low-power devices, are not designed to handle the high inrush current of an AC. Type D MCBs are too robust for air conditioners and are better suited for large industrial systems. Type C MCBs are the ideal choice for air conditioners.
4. Not Considering Voltage and Wiring Size:
It’s easy to overlook the voltage rating and wire size when selecting an MCB. The MCB should match the voltage rating of your AC system (typically 230V for home ACs). Additionally, ensure that the wiring is appropriate for the selected MCB’s rating to avoid potential hazards.
Taking these factors into account will help you choose the right MCB and ensure safe, efficient operation of your air conditioner.
Conclusion
When selecting an MCB for a 2-ton air conditioner, it’s essential to consider several key factors: the current rating, type, inrush current, and voltage rating. Choosing the correct MCB ensures that the AC system operates efficiently while being protected from overloads and short circuits. By carefully calculating the running and surge current, selecting the right MCB type, and avoiding common mistakes, you can ensure that your air conditioner is both safe and reliable. Always opt for a Type C MCB with a rating between 10A and 16A for residential 2-ton AC units to ensure optimal performance and protection.
