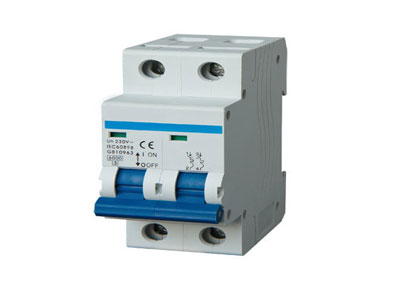

Which MCB Is Best For Home?

Key Takeaway

When choosing an MCB (Miniature Circuit Breaker) for home use, it’s essential to select the right current rating and type. For most homes, a C-type MCB is a good choice. This type provides protection against overloads and short circuits, commonly found in home appliances. The rating typically ranges from 6A to 32A, depending on the load and circuit requirements.

For general home usage, choose an MCB that matches the load of each specific circuit. For example, lighting circuits often need lower ratings (6A to 10A), while power circuits for appliances may need higher ratings (16A to 32A). Always consult an electrician to ensure the MCB is appropriately sized and installed for safety. This ensures your electrical system is protected from faults without causing unnecessary trips.

Factors to Consider When Choosing an MCB for Home Use

When selecting an MCB for your home, you need to consider several factors that will determine its effectiveness in protecting your household from electrical hazards.

1. Current Rating
The current rating is perhaps the most important consideration. This is the maximum amount of current the MCB can handle before tripping. Ensure that the MCB matches the rated current of the circuit it will protect. For typical household circuits, an MCB rated between 6A and 32A is common.

2. Breaking Capacity
This refers to the maximum fault current the MCB can interrupt without damage. For homes, an MCB with a breaking capacity of around 6kA to 10kA is generally sufficient.

3. Type of Load
The type of load being protected plays a key role in MCB selection. For example, lighting circuits might need a different type of MCB than appliance circuits, due to the nature of their electrical draw.

4. Compliant with Standards
Ensure that the MCB is certified and meets local or international standards like IEC 60898, which guarantees safety and quality.

By paying attention to these factors, you ensure that your MCB will provide optimal protection while fitting seamlessly into your home’s electrical system.

Types of MCBs Suitable for Residential Applications

There are various types of MCBs designed for different applications, each offering unique features that cater to specific residential needs. Understanding the different types will help you make an informed decision when selecting the right one for your home.

1. Type B MCB
Type B MCBs are ideal for circuits with purely resistive loads, such as lighting and small appliances. They trip when the current exceeds 3 to 5 times the rated current, making them a good fit for home circuits that don’t experience high inrush currents. They are commonly used in standard lighting and plug circuits in homes.

2. Type C MCB
Type C MCBs are suitable for circuits that include inductive loads, such as motors and appliances with high inrush currents. These MCBs trip when the current exceeds 5 to 10 times the rated current, making them ideal for air conditioners, fridges, and other home appliances with high startup current.

3. Type D MCB
Type D MCBs are designed for circuits with very high inrush currents, such as those in large motors or equipment that draws substantial current during startup. They trip when the current exceeds 10 to 20 times the rated current, making them suitable for heavy-duty appliances but rarely used in typical residential settings.

4. Combination MCBs
Some MCBs combine different characteristics to address multiple types of loads in a single device. These are ideal for households with diverse needs, like kitchens or home offices, where a combination of lighting, appliances, and heavy-duty equipment need protection.

When choosing the type of MCB, ensure it aligns with the nature of the load you are protecting. For most homes, Type B and Type C MCBs will suffice.

Importance of Trip Curves in Home MCB Selection

The trip curve of an MCB is a critical factor in determining how quickly the breaker will respond to an overload or short circuit. Each MCB has a specific trip curve, and understanding how it works is essential for selecting the best MCB for your home.

1. What is a Trip Curve?
The trip curve shows the relationship between the amount of current flowing through the circuit and the time it takes for the MCB to trip. A steeper curve means the MCB will trip more quickly when exposed to higher currents, while a flatter curve indicates that it will allow higher overcurrents for longer periods before tripping.

2. Why Trip Curves Matter
The trip curve ensures that the MCB will not unnecessarily disconnect the circuit during temporary surges like motor start-ups, which are common in homes. If an MCB trips too quickly, it may disconnect your appliances prematurely, causing inconvenience. On the other hand, if it trips too slowly, the circuit may suffer damage before the MCB intervenes.

3. Types of Trip Curves
Type B: The quickest to trip, suitable for residential lighting and general-purpose circuits.
Type C: Slightly slower, designed for circuits with moderate inrush currents like appliances.
Type D: The slowest, ideal for heavy-duty equipment with large inrush currents.
When selecting an MCB for home use, it is important to match the trip curve to the expected current draw of your appliances and circuits. This ensures reliable operation and protects both your equipment and your home’s electrical wiring.

Comparing Popular Brands and Models for Home MCBs

With several brands and models available in the market, it’s crucial to choose high-quality MCBs from trusted manufacturers. Popular brands offer reliable products with varying features suited for different residential needs. Let’s compare some of the best options available.

1. Schneider Electric
Schneider’s MCBs, such as the Acti9 series, are well-regarded for their reliability, safety features, and ease of installation. They offer a range of Type B and Type C MCBs that cater to residential needs. Schneider Electric’s products are known for long-term durability and compliance with international standards.

2. Siemens
Siemens is another trusted brand offering high-quality MCBs like the Sentron series. These breakers are known for their advanced trip characteristics and compact design. Siemens MCBs are well-suited for homes with high-power demand and are available in both Type B and Type C options.

3. Legrand
Legrand offers reliable, cost-effective MCBs like the DX3 series, which are known for robust performance and simple functionality. These MCBs are particularly popular in European homes for their compliance with safety standards and ease of use.

4. Hager
Hager’s MCBs are durable, with some models featuring increased breaking capacity for homes with larger electrical systems. The Hager H3 series offers a broad range of MCBs that are ideal for home installations and offer excellent value for money.

5. ABB
ABB is well-known for offering high-performance MCBs for residential and commercial applications. Their S800 series provides great flexibility in selecting models for specific needs, offering both Type B and Type C options.

When choosing between brands, consider factors like warranty, ease of installation, and cost. Opting for well-established brands will ensure that you get reliable protection and long-lasting safety for your home.

Installation Tips and Maintenance Practices for Home MCBs

Proper installation and regular maintenance of MCBs are essential for ensuring safe operation and preventing electrical hazards in your home. Here are some helpful tips to get the most out of your MCB.

1. Proper Installation
Always ensure that the MCB is installed by a qualified electrician. Incorrect installation can lead to malfunction, preventing the MCB from properly protecting the circuit. Ensure that the MCB is properly rated for the circuit it is protecting, and follow the manufacturer’s instructions carefully. Installation should take place in an appropriate enclosure to prevent accidental contact with live parts.

2. Check for Proper Sizing
Choosing the right current rating for the MCB is essential. Ensure the MCB is neither too large nor too small for the circuit. An undersized MCB will trip frequently, while an oversized one may not provide adequate protection.

3. Regular Inspection
Periodically check your MCBs for signs of wear or damage, such as burn marks or loose connections. Ensure that the tripping mechanism functions properly by testing the MCB regularly. Also, check for any corrosion around connections that could impede the breaker’s effectiveness.

4. Maintenance
While MCBs generally don’t require much maintenance, keeping the electrical panel clean and dry is important. Dust and moisture can cause issues with MCBs, leading to false trips or electrical malfunctions.

5. Replacing Faulty MCBs
If an MCB trips frequently or shows signs of failure, replace it immediately with a compatible model. Using an old or faulty MCB could expose your home to potential electrical risks.

Conclusion

Selecting the best MCB for home use requires understanding factors like current rating, trip curve, and the specific requirements of your household. It’s essential to choose the right type of MCB based on the electrical needs of your home and to ensure proper installation and maintenance. By doing so, you’ll provide reliable protection against electrical faults and safeguard both your family and home appliances.
