Key Takeaway

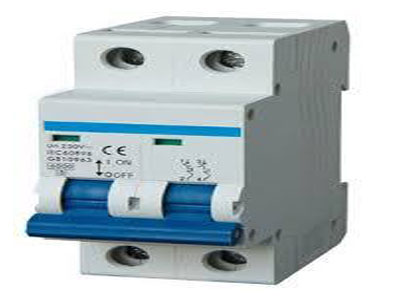

The best MCB (Miniature Circuit Breaker) for an air conditioner (AC) is typically a Type C MCB. Type C MCBs are designed to handle high inrush currents, which occur when the AC starts. They trip at 5-10 times the rated current, making them ideal for appliances like ACs that require higher initial power.
For a 1.5-ton AC, an MCB rated at 16A or 20A is usually sufficient, depending on the power consumption of the unit. Always ensure the MCB matches the load and voltage of your AC to prevent tripping or overloading. Using the right Type C MCB ensures reliable operation and protects both the AC and your electrical circuit from damage caused by overloads or short circuits. Always consult an electrician for precise recommendations based on your setup.
Understanding the Electrical Load of Air Conditioners
Before selecting an MCB for your air conditioner, it’s essential to understand the electrical load that the AC unit requires. The electrical load of an AC system refers to the amount of current it draws from the power supply to operate its components. This includes the compressor, fan motors, and other internal electrical systems.
Air conditioners are high-power devices and often require significant amounts of electricity, especially during start-up. The initial surge in current can be much higher than the normal operating current. Understanding the power rating of your AC unit is the first step in choosing the right MCB. For instance, if your air conditioner is rated at 1.5 tons, you can expect it to draw around 1500 to 1800 watts of power, which translates to an average current of around 7-8 amps.
It’s important to select an MCB that can handle this load, including occasional overloads, without tripping unnecessarily. The MCB should be chosen to match both the start-up surge and the normal operational load to avoid frequent tripping while providing optimal protection.
Key Specifications to Look for in an MCB for AC
When choosing an MCB for an air conditioning system, it’s essential to focus on the specifications that will ensure the circuit breaker provides both reliable protection and long-term durability. The right MCB will effectively safeguard your AC unit from electrical faults like overloads, short circuits, and under-voltage issues.
1. Current Rating:
The first thing to consider is the current rating of the MCB. The current rating determines the maximum amount of current the MCB can handle before it trips to protect the circuit. The rating should closely match the nominal current required by your AC system. A common sizing for an air conditioner rated at 1.5 to 2 tons is usually around 10 to 20 amps, depending on the make and model.
2. Breaking Capacity:
The breaking capacity of an MCB refers to its ability to disconnect the circuit during a fault, such as a short circuit. It’s critical to ensure the MCB has a high breaking capacity to withstand the fault current without causing damage. Always choose an MCB with a breaking capacity higher than the maximum fault current your system may experience.
3. Curve Type (B, C, or D):
Choosing the right MCB curve (B, C, or D) is another important consideration. This curve determines how the MCB responds to overloads. For air conditioners, a C curve is usually the best option since it allows for short-duration current surges, like those that happen when the compressor starts, while still providing protection against long-term overloads.
4. Type of Protection (Thermal and Magnetic):
Most modern MCBs provide thermal protection (for overloads) and magnetic protection (for short circuits). Both features are essential for the safe operation of an AC system. Make sure the MCB you choose provides both types of protection to cover all potential electrical risks.
In summary, the MCB should be rated correctly for the current load, provide a high breaking capacity, and use an appropriate curve type to accommodate the air conditioner’s operational characteristics.
You May Like to Read
Comparing B, C, and D Curve MCBs for AC Units
When selecting an MCB for an air conditioner, one of the key factors to consider is the MCB curve type. The MCB curve determines how the breaker responds to different electrical conditions, particularly overloads and short circuits. There are three main types of MCB curves: B, C, and D, each suited to different applications. Let’s compare these curve types in the context of air conditioners.
1. B Curve MCB:
The B curve is designed to trip when the current exceeds 3 to 5 times the rated current. This curve is suitable for applications with low inrush currents, such as lighting circuits and small appliances. B curve MCBs are not recommended for air conditioners since AC units draw high starting currents (inrush currents) that could cause the breaker to trip unnecessarily.
2. C Curve MCB:
The C curve MCB is ideal for air conditioners. It allows for short-duration overloads (like the high inrush current when the compressor starts) but trips when the overload is sustained for too long. The C curve is designed to withstand inrush currents of 5 to 10 times the rated current, making it the best choice for protecting air conditioners and other high-power devices.
3. D Curve MCB:
The D curve MCB is designed for applications that experience very high inrush currents, such as transformers and certain motors. It allows the current to exceed 10 times the rated current before tripping. While it’s suitable for industrial applications, it’s generally not necessary for air conditioners. The D curve would allow for too much delay in tripping during a fault, potentially leaving the system exposed to unnecessary risks.
For most residential and commercial AC units, the C curve is the optimal choice due to its balance between handling inrush currents and providing reliable overload protection.
Factors Influencing MCB Selection Based on AC Size and Type
Choosing the right MCB is not a one-size-fits-all process; it depends on several factors, particularly the size and type of the air conditioning unit. Larger and more powerful units may require different protection strategies than smaller models. Here are some factors to consider when selecting an MCB based on the AC size and type.
1. Air Conditioner Capacity:
The capacity of the AC unit directly affects its current rating. Larger units, such as those rated for 3 tons or more, require MCBs with higher ratings (typically 20 amps and above). On the other hand, smaller units may only need 10 to 16 amps. Ensure the MCB is sized appropriately for the AC’s power consumption and starting current.
2. Type of AC (Split vs. Window Units):
Split AC units typically require MCBs that can handle higher continuous currents due to their more powerful compressors and motors. For window AC units, the power demand is generally lower, so the MCB rating can be smaller. Be sure to check the specifications of each model, as the power requirement can differ significantly between these two types.
3. Frequency of Use:
If the AC unit is used continuously or in commercial settings, such as a restaurant or office, the MCB needs to handle sustained loads without tripping. In such cases, selecting an MCB with a slightly higher current rating may be advisable to account for the long operational hours.
4. Environmental Factors:
The environment where the AC operates also influences the MCB choice. In areas prone to power surges or frequent electrical fluctuations, a surge protector in combination with the MCB may be needed for added protection.
By considering the size, type, and operational environment of your AC, you can choose an MCB that offers optimal protection and ensures smooth operation.
Common Mistakes to Avoid When Choosing an MCB for AC
When selecting an MCB for an air conditioner, there are several common mistakes that can undermine the safety and performance of your system. Avoiding these pitfalls is essential for ensuring reliable protection.
1. Under-Sizing the MCB:
One of the most common mistakes is under-sizing the MCB. This occurs when the chosen MCB cannot handle the starting current or the load of the AC unit. Under-sized MCBs will trip frequently or fail to provide protection in case of a fault, leading to equipment damage or even fire hazards. Always check the AC’s current rating and choose an MCB with an appropriate amperage.
2. Choosing the Wrong Curve Type:
Selecting the wrong MCB curve can cause frequent tripping or delayed disconnection. A B curve MCB may trip too early during the initial surge of current when the AC starts, while a D curve MCB may delay tripping during an overload. Always opt for a C curve for most air conditioners, as it provides a good balance between protection and tolerance for inrush currents.
3. Ignoring the Breaker’s Breaking Capacity:
The breaking capacity of the MCB refers to its ability to interrupt high fault currents. A breaker with an insufficient breaking capacity may fail to clear the fault, potentially causing further damage or fires. Ensure that the MCB you choose has a high breaking capacity, especially if your area is prone to electrical surges.
4. Not Considering Future Expansion:
When installing an MCB, it’s important to consider the possibility of future load increases. If you plan to upgrade your AC system or add additional units, it might be worth investing in an MCB with a slightly higher rating to accommodate future needs without compromising safety.
Conclusion
Selecting the best MCB for your air conditioning system is essential for ensuring reliable protection and optimal performance. By carefully considering factors such as current rating, curve type, and the AC unit’s power consumption, you can avoid the common pitfalls and choose an MCB that meets the needs of your system. The right MCB not only prevents electrical faults but also ensures long-term safety for your AC and the surrounding electrical infrastructure.
