Key Takeaway
For a 1.5-ton air conditioner (AC), the best MCB (Miniature Circuit Breaker) size is typically 16A. This is because a 1.5-ton AC generally requires a current of about 7-8 amps, and a 16A MCB provides enough capacity to handle this without tripping under normal conditions.
It’s important to choose an MCB with the right breaking capacity, usually 6kA for residential use. The MCB should protect the AC from overloads and short circuits, ensuring both safety and reliability. A 16A MCB is commonly used for air conditioners in residential or light commercial installations, as it allows for safe operation while offering sufficient protection against electrical faults. Always check the manufacturer’s recommendations for specific requirements.
Understanding the Basics of MCB and RCCB

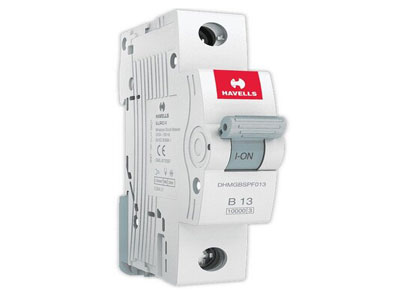

MCB: A Miniature Circuit Breaker (MCB) is a device used to protect an electrical circuit from overcurrents caused by overloads or short circuits. MCBs are rated for specific current values and automatically trip when the current exceeds the rated value. Their primary function is overload protection, which prevents overheating and damage to wiring and devices.
RCCB: On the other hand, a Residual Current Circuit Breaker (RCCB) is designed to protect against electric shocks caused by leakage currents. It detects the difference between the live (hot) and neutral wires, and if this difference (residual current) exceeds a set threshold, it trips the circuit. RCCBs are crucial for earth leakage protection, ensuring safety from potential shocks.
Key Differences Between MCB and RCCB
While both MCBs and RCCBs serve protective functions, they have distinct roles in an electrical system. The key differences are:
Function:
MCB: Protects against overloads and short circuits by monitoring the current flow.
RCCB: Protects against electric shock by detecting leakage currents, typically due to insulation failures or contact with a live part.
Protection Type:
MCB: Primarily protects the wiring and devices from damage due to excessive current.
RCCB: Focuses on human safety by detecting faults like earth leakage, which could lead to electric shocks.
Current Sensitivity:
MCB: Sensitive to excessive current or short circuits but does not react to low-level leakage currents.
RCCB: Sensitive to even small imbalances (as low as 5 mA) in the current, ensuring any leakage current is quickly detected and the circuit is disconnected.
Application:
MCB: Typically used in residential, commercial, and industrial settings for general circuit protection.
RCCB: Primarily used in areas where there is a risk of electric shock, such as bathrooms, kitchens, and outdoor settings.
In summary, MCBs protect your circuit from damage due to overcurrent, while RCCBs focus on human safety by detecting earth leakage. Understanding this difference is key when choosing the appropriate protection for your electrical setup.
You May Like to Read
Applications and Uses of MCB and RCCB
MCBs are widely used in both residential and industrial applications. They protect circuits that supply power to equipment, lighting, and other electrical devices. In a typical household, MCBs are installed in the distribution board to safeguard the wiring and appliances from potential damage caused by an overload or short circuit. For example, when a device like an air conditioner or microwave exceeds its rated current, the MCB will trip, preventing further damage.
In industries, MCBs are used to protect larger electrical installations, such as motor circuits and machinery, where overcurrent can cause severe damage. MCBs are also used in panel boards to protect individual circuits in commercial buildings, ensuring that each section of the electrical network remains protected independently.
RCCBs, on the other hand, are crucial where the risk of electric shock is higher. They are commonly used in environments with moisture or water, such as bathrooms and kitchens, where leakage currents are more likely to occur. An RCCB is also required for electrical circuits supplying outdoor installations like garden lights, swimming pools, and construction sites.
RCCBs are typically used alongside MCBs for comprehensive protection. While MCBs prevent overcurrent, RCCBs safeguard people from electric shocks by disconnecting the circuit in the event of leakage. This combination is often found in modern electrical installations, where both overcurrent and leakage protection are necessary.
Advantages and Limitations of MCBs and RCCBs
Advantages of MCBs:
Overload and Short Circuit Protection: MCBs offer reliable protection from excessive current due to overloads and short circuits, preventing fires and damage.
Automatic Reset: Once the fault is cleared, MCBs can be reset, making them convenient and easy to use in everyday applications.
Durability: MCBs are built to last and provide years of service with minimal maintenance.
Limitations of MCBs:
No Leakage Protection: MCBs do not offer any protection against earth leakage or electric shock hazards, which are crucial for safety in certain environments.
Limited to Overcurrent Protection: While MCBs are great at preventing overloads, they cannot detect faults related to ground leakage or insulation failures.
Advantages of RCCBs:
Leakage Protection: RCCBs provide a critical safety feature by detecting leakage currents, making them ideal for protecting humans from electric shocks.
Sensitive to Low Currents: RCCBs can detect even very small currents (as low as 5mA), ensuring prompt action against potential hazards.
Limitations of RCCBs:
Cannot Protect Against Overload: RCCBs do not offer protection from overloads or short circuits, meaning they need to be used in conjunction with MCBs for full protection.
Sensitive to Power Supply Issues: RCCBs might trip unnecessarily in areas with unstable or fluctuating electrical supply, even when there is no fault.
Which One Is Right for Your Electrical System?
When choosing between an MCB and an RCCB, the decision largely depends on the type of protection required:
For Overcurrent Protection: If your main concern is protecting the circuit from overloads and short circuits, an MCB is the best choice.
For Earth Leakage Protection: If the goal is to safeguard against electric shocks, particularly in high-risk environments, an RCCB is essential.
For Comprehensive Protection: In most modern installations, a combination of both MCB and RCCB is used to ensure complete protection, covering both overcurrent and leakage issues.
It’s also essential to assess the environment and usage. In a high-risk area like a bathroom, RCCBs are crucial for safety. In industrial or commercial installations, a combination of both devices ensures that both overloads and leakage are adequately handled.
Conclusion
In conclusion, MCBs and RCCBs are both essential components in ensuring the safety and efficiency of electrical systems. While MCBs focus on preventing damage caused by overcurrent, RCCBs provide an extra layer of safety by protecting against electric shocks caused by leakage currents. Depending on your electrical setup and requirements, you might need one or both of these devices to ensure optimal protection.
