Key Takeaway
Digital multimeters are more accurate, easier to read, and come with additional features compared to analog models. Analog multimeters, however, excel in monitoring fluctuating readings in real time.
For precision and convenience, go for a digital multimeter. Choose an analog multimeter if you prefer a simple, cost-effective tool for basic tasks.

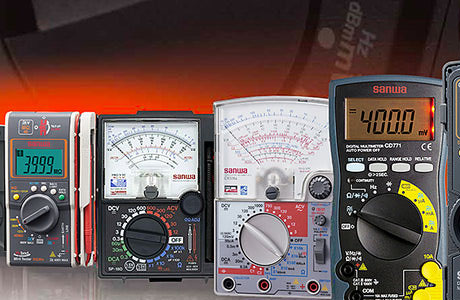

Understanding the Basics of Analog and Digital Multimeters
Analog and digital multimeters are essential tools in the world of electrical measurement and diagnostics. They help in measuring various electrical parameters such as voltage, current, and resistance. The primary difference between an analog and a digital multimeter lies in how they display the readings. Analog multimeters use a needle and dial, which can be advantageous in showing trends in measurements. This can be particularly useful when monitoring slow changes over time.
On the other hand, digital multimeters provide readings on an LCD screen, offering more precise and easier-to-read results. In this introduction, we will delve into the basic functionalities of both types of multimeters, helping you understand which might be better suited for your specific needs.
Advantages of Analog Multimeters in Certain Applications
While digital multimeters (DMMs) are widely used for their accuracy and ease of use, analog multimeters still have several advantages in specific applications. One of the primary benefits of analog meters is their ability to show real-time fluctuations in readings, which is particularly useful when working with AC signals or circuits with rapidly changing conditions. The needle movement on an analog meter provides an immediate visual representation of the changes in current or voltage, making it easier to observe trends or detect minor fluctuations.
Analog multimeters are also advantageous when measuring circuits that involve low-frequency signals. In such cases, the smooth movement of the needle provides a more intuitive understanding of the circuit behavior. Additionally, analog multimeters are generally more durable and can withstand harsh conditions better than their digital counterparts. In environments where the multimeter might face physical wear and tear, analog meters tend to be more rugged and less prone to damage from shocks or drops.
For those working in environments where continuous monitoring of an unstable signal is necessary, analog multimeters can provide more insightful data by allowing technicians to observe the gradual changes of the circuit over time, helping to spot intermittent issues or unstable conditions.
Benefits of Digital Multimeters for Modern Testing Needs
Digital multimeters (DMMs) have become the preferred tool in electrical testing due to their accuracy, ease of use, and additional features that cater to modern testing needs. Here are some key benefits of digital multimeters:
1. Accuracy: Digital multimeters provide precise, numerical readings, eliminating the guesswork that comes with analog meters. With higher resolution and the ability to measure to the smallest decimal places, DMMs ensure that you get accurate results every time.
2. Ease of Use: DMMs are often equipped with large digital displays, making it easy to read measurements. The automatic range selection feature allows users to measure a wide range of values without manually adjusting the meter, reducing the chance of operator error.
3. Advanced Features: Many modern digital multimeters come with added features such as data logging, min/max memory, auto-shutoff, backlit displays, and even Bluetooth connectivity for remote monitoring. These features increase their versatility and efficiency in both field and lab settings.
4. Increased Safety: Digital multimeters often include built-in safety features, such as fuse protection and overload alerts, that help protect both the user and the instrument. Many models are designed to meet international safety standards (e.g., CAT III and CAT IV ratings).
5. Compact and Lightweight: Digital multimeters are generally more compact and lightweight than their analog counterparts, making them easier to carry and handle during testing in tight or difficult-to-reach spaces.
Key Factors to Consider When Choosing Between the Two
When deciding whether to use a multimeter or an oscilloscope, several factors should be considered to choose the right tool for the job:
1. Measurement Needs:
Use a multimeter if you need to measure basic electrical parameters such as voltage, current, or resistance in a straightforward, static manner.
Choose an oscilloscope if you need to analyze complex waveforms, signal frequencies, or timing characteristics of electrical signals.
2. Budget:
Multimeters are generally more affordable, making them a good option for standard electrical measurements or fieldwork.
Oscilloscopes are more expensive and are typically used in professional settings or research environments where high-precision signal analysis is required.
3. Complexity of the Circuit:
If you’re working with simple circuits, a multimeter will likely suffice, as it provides accurate, direct readings of basic electrical parameters.
If you’re working with high-speed circuits or need to analyze signal integrity, an oscilloscope is essential for understanding how the circuit behaves over time.
4. Portability:
Multimeters are compact and easily portable, which makes them suitable for fieldwork or quick measurements on the go.
Oscilloscopes, particularly digital oscilloscopes, are more bulky and require a stationary setup, but they provide far more comprehensive analysis.
Limitations of Both Analog and Digital Models
Analog and digital multimeters have unique strengths, but they also come with limitations. Analog multimeters are prone to parallax errors, which occur when the needle is not viewed from a direct angle. This can lead to inaccurate readings, especially for precise tasks. Furthermore, they lack advanced features like auto-ranging or data logging, limiting their usability in modern diagnostics.
Digital multimeters solve many of these issues with precise digital displays and additional features. However, they too have drawbacks. Their reliance on batteries means they can fail unexpectedly without proper maintenance. They also struggle with rapidly fluctuating signals due to their sampling rate limitations.
Both types of multimeters can be affected by environmental factors like temperature, humidity, and electromagnetic interference. Understanding these limitations helps users make informed decisions about which tool to use for specific tasks.
Conclusion
In conclusion, both analog and digital multimeters have their advantages, and the choice between the two depends largely on the user’s preferences and the task at hand. Analog multimeters are more intuitive for visually seeing changes in readings, which can be particularly helpful in certain applications like signal analysis. They also tend to be more durable in harsh environments.
On the other hand, digital multimeters are often more accurate and easier to read, especially for beginners. They provide numerical readings, reducing the chances of misinterpretation. When accuracy and ease of use are your priorities, a digital multimeter is usually the best option. Ultimately, the decision comes down to your specific needs and comfort level with each type of meter.
