Key Takeaway
An MCB (Miniature Circuit Breaker) is used to protect electrical circuits from overloads and short circuits. It automatically switches off the circuit when the current exceeds the safe limit. MCBs are best for general overcurrent protection in residential and commercial setups.

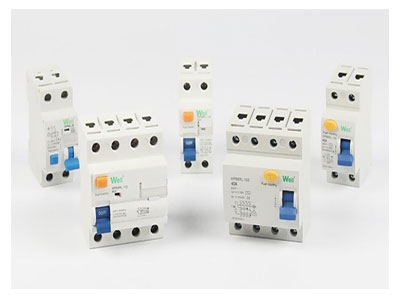

On the other hand, an RCCB (Residual Current Circuit Breaker) is designed to protect against earth leakage faults, preventing electric shocks. It detects differences in the current between live and neutral wires, switching off the circuit if an imbalance is detected.
So, which is better depends on your needs. Use an MCB for overcurrent protection and an RCCB for earth leakage protection. In some cases, both MCB and RCCB are used together to ensure complete safety in electrical installations.
Understanding the Basics of ACB (Air Circuit Breaker) and MCCB (Molded Case Circuit Breaker)
In the electrical industry, understanding the various types of circuit breakers is crucial for selecting the appropriate protection device for different applications. Two popular types of circuit breakers are Air Circuit Breakers (ACB) and Molded Case Circuit Breakers (MCCB). While both serve the same purpose of protecting electrical circuits from overload and short circuits, they operate in distinct ways and are suited for different environments.
An ACB (Air Circuit Breaker) is designed for use in high current applications and is known for its ability to interrupt large amounts of current. The “air” in ACB refers to the medium used to extinguish the arc when the circuit is broken. This arc-quenching method allows ACBs to handle large fault currents, typically in industrial settings.
On the other hand, a MCCB (Molded Case Circuit Breaker) is used for moderate current applications and is more common in commercial and residential settings. MCCBs are versatile, offering adjustable trip settings that provide protection against both overloads and short circuits. While their current rating is lower than that of ACBs, MCCBs are more compact and easier to install in smaller spaces.
Understanding the differences between ACBs and MCCBs is the first step toward choosing the right circuit breaker for your application, depending on the voltage, current, and space constraints.
Key Features and Functions of ACB vs. MCCB in Electrical Protection
When it comes to electrical protection, both ACBs and MCCBs offer specific advantages depending on the nature of the application. Here, we’ll explore the key features and functions of both types of circuit breakers to understand how they contribute to system safety.
ACB Features and Functions:
The Air Circuit Breaker (ACB) is primarily designed for high current capacities, typically ranging from 630A to 10,000A. ACBs are used in industrial applications and high-power environments like substations and large-scale electrical systems. They use air as the arc-extinguishing medium, which is highly effective at managing high fault currents. One significant advantage of ACBs is their adjustable trip settings, allowing for customized protection based on system requirements. Additionally, ACBs offer a wide range of protection, including short-circuit, overload, and earth fault protection, making them ideal for systems that require robust circuit interruption.
MCCB Features and Functions:
The Molded Case Circuit Breaker (MCCB) is more compact than the ACB and is typically used for lower current ratings (usually up to 2500A). MCCBs are ideal for applications such as commercial buildings, smaller industrial setups, and residential installations. What makes MCCBs stand out is their adjustability—they come with customizable trip settings for overload and short-circuit protection, ensuring that they can provide adequate protection for a wide range of electrical loads. MCCBs also feature molded cases that protect internal components from external damage, providing added durability.
The main difference between the two lies in their application scope: ACBs handle large-scale, high-power applications, whereas MCCBs are more suited for smaller-scale and medium voltage systems.
You May Like to Read
Performance Comparison: ACB vs. MCCB for Different Load Capacities
When selecting between an ACB and MCCB, one of the most critical factors to consider is their performance in various load capacities. The effectiveness of a circuit breaker largely depends on the load it is protecting. Let’s compare ACBs and MCCBs to see how they perform in different environments and load conditions.
ACB Performance:
Air Circuit Breakers excel in high-load applications where the current rating can reach up to 10,000A or more. They are designed for environments where high fault currents might occur, such as in industrial power plants, transformers, and substations. ACBs are excellent for handling extreme power surges, ensuring that the electrical system remains protected even under the harshest conditions. Their ability to interrupt high fault currents without compromising system stability makes them a popular choice in large-scale industrial applications. However, ACBs can be larger and more costly, which may not be ideal for environments with moderate electrical load requirements.
MCCB Performance:
On the other hand, Molded Case Circuit Breakers are well-suited for moderate-load applications. They are commonly used in residential and commercial buildings, where electrical loads are predictable and relatively stable. MCCBs can handle current ratings up to 2500A, making them ideal for medium-scale industrial applications or light-duty circuits. Their adjustable settings allow for fine-tuning of protection according to the exact needs of the system. In MCCBs, the breaking capacity is typically lower than ACBs, which means they are not ideal for high fault currents, but they offer excellent protection for everyday electrical systems.
Ultimately, the performance of ACBs is superior in high-load environments, while MCCBs excel in medium-load applications, offering flexible and cost-effective protection.
ACB vs. MCCB for Different Load Capacities H2: How ACB and MCCB Differ in Terms of Cost, Maintenance, and Durability
Cost, maintenance, and durability are vital factors to consider when selecting a circuit breaker. Understanding these aspects helps in making an informed decision, especially when the long-term investment is involved.
Cost:
ACBs are typically more expensive than MCCBs due to their larger size, higher current ratings, and advanced features like adjustable trip settings and arc-quenching mechanisms. The cost of an ACB can significantly increase depending on the model and application, making it a higher upfront investment. However, in industrial settings where high fault currents are common, this investment is justified by the superior protection provided.
On the other hand, MCCBs are more affordable and cost-effective for moderate-load applications. Their compact size and relatively simpler design make them easier to manufacture, and they are generally much cheaper than ACBs. For small to medium-scale installations, MCCBs offer the best value for money.
Maintenance:
In terms of maintenance, MCCBs are easier to maintain. Their molded case protects the internal components from dust and debris, reducing the need for frequent service. ACBs, however, require more maintenance due to their more complex internal mechanism. The air used for arc quenching can accumulate dirt and moisture, necessitating regular inspection and cleaning to ensure optimal performance.
Durability:
ACBs are built to last in high-demand environments. They are designed to handle extreme fault currents and high temperatures, making them highly durable in heavy-duty applications. However, this durability often comes with increased maintenance requirements. In contrast, MCCBs are durable for medium-duty applications and can last for many years with proper maintenance. They provide reliable protection but may not withstand extreme conditions as effectively as ACBs.
How ACB and MCCB Differ in Terms of Cost, Maintenance, and Durability H2: Applications of ACB vs. MCCB in Industrial, Commercial, and Residential Settings
The decision to use an ACB or an MCCB depends significantly on the type of application and the environment in which it is used. Let’s break down the applications of both:
ACB Applications:
Air Circuit Breakers are primarily used in industrial applications. They are ideal for high-current systems such as power distribution networks, transformers, and large generators. These breakers are suitable for applications requiring large fault current interruption capabilities, like in oil refineries, chemical plants, and steel manufacturing. They provide robust protection and ensure the safety of critical industrial equipment.
MCCB Applications:
In residential and commercial environments, MCCBs are often the preferred choice due to their compact size and cost-effectiveness. They are widely used in commercial buildings, small factories, and residential homes for circuit protection. Their ability to provide adjustable protection for moderate electrical loads makes them perfect for low-to-medium voltage applications. In industrial settings, MCCBs are typically used for smaller equipment or auxiliary circuits, where the load is manageable and the risk of large fault currents is minimal.
Conclusion
In conclusion, both ACBs and MCCBs offer vital circuit protection, but their strengths and limitations depend on the specific requirements of the system. ACBs are ideal for high-current applications in heavy-duty industrial settings, while MCCBs are best suited for moderate-load applications in residential and commercial environments. The choice between these two circuit breakers hinges on factors like current rating, cost, maintenance, and application needs. By assessing these variables, engineers can make an informed decision, ensuring optimal protection for electrical systems in any environment.
