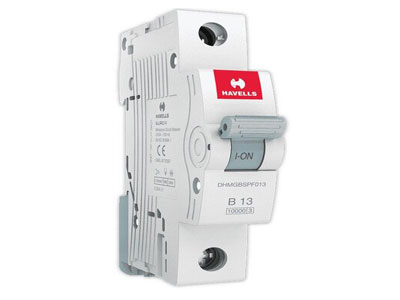

Which Class MCB Is Best?

Key Takeaway

The best class of MCB (Miniature Circuit Breaker) depends on your application. For homes and light loads, Type B MCBs are ideal. They trip when the current exceeds 3-5 times the rated current, making them suitable for lights, fans, and basic appliances. Type B MCBs are widely used in residential circuits because they handle low inrush currents effectively.

For commercial or industrial use with higher inrush currents, Type C MCBs are better. These trip at 5-10 times the rated current and are perfect for motors, air conditioners, and other heavy-duty equipment. For very high inrush current scenarios, like large machines, Type D MCBs are recommended. Choosing the right MCB class ensures proper protection and prevents nuisance tripping. Always match the MCB class to the load type for safety and efficiency.

Understanding MCB Classes: B, C, and D

The first step in selecting the best MCB class for your application is understanding the three main types: B, C, and D.

Class B MCBs are designed to trip when the current reaches 3 to 5 times the rated current. They are commonly used for circuits with low inrush currents, such as lighting and small appliances. They trip quickly, making them ideal for sensitive circuits.

Class C MCBs are more versatile and trip at 5 to 10 times the rated current. They are used for circuits with moderate inrush currents, such as air conditioning units, refrigerators, and other appliances with motors. Class C MCBs are the most common choice in residential and light commercial applications.

Class D MCBs are the least sensitive, tripping at 10 to 20 times the rated current. They are best suited for circuits with high inrush currents, such as industrial machinery, transformers, and large motors.

Choosing the right class depends on the type of load your circuit will carry and how much inrush current the device will generate during startup.

Factors That Determine the Best MCB Class for Applications (250-300 Words)
When selecting the best MCB class for your electrical application, several key factors must be considered. These include the nature of the load, the type of equipment you are protecting, and the environment in which the MCB will operate.

Nature of the Load: The type of load connected to the circuit plays a major role in MCB selection. For instance, circuits with low or steady loads, such as lighting or household appliances, are better suited for B-class MCBs. These devices do not have high inrush currents and can be quickly protected from overloads. On the other hand, circuits with devices like motors, refrigerators, or air conditioners that draw a high inrush current require a C-class MCB. These MCBs can handle short-duration current spikes without tripping unnecessarily.

Inrush Current: Devices with motors or transformers typically experience a high inrush current at startup. In these cases, a D-class MCB may be necessary. It allows higher surge currents and is commonly used for industrial machinery or equipment with large transformers. Choosing an MCB with the appropriate trip curve prevents unnecessary tripping and ensures the protection is efficient.

Environmental Conditions: The environment where the electrical system operates also impacts MCB selection. For sensitive areas like laboratories or medical facilities, you may prefer B-class MCBs due to their fast response time. For industrial environments where machinery is the primary load, D-class MCBs are more suitable because they accommodate high inrush currents without tripping.

Application Type: Lastly, the classification of the application—whether residential, commercial, or industrial—determines the appropriate MCB class. Residential circuits usually use B or C class, while larger commercial or industrial systems may need C or D class MCBs.

Considering these factors will help ensure the safety and efficiency of your electrical system.

Comparing MCB Classes for Residential, Commercial, and Industrial Use (250-300 Words)
Understanding how MCB classes vary in their applications across residential, commercial, and industrial environments is essential for proper circuit protection.

Residential Use: In residential environments, the load on the electrical system is typically lower, with appliances such as lighting, small kitchen equipment, and home entertainment systems. Here, B-class MCBs are most commonly used, as these circuits usually don’t experience significant inrush currents. For example, lighting circuits and outlets for small appliances will benefit from the fast tripping characteristics of B-class MCBs, which offer excellent protection from overloads and short circuits without the risk of tripping unnecessarily due to brief inrush currents.

Commercial Use: Commercial environments, such as offices, shops, and small manufacturing setups, have a wider variety of electrical loads, from computers and HVAC systems to larger motors. In these cases, C-class MCBs are often the best choice. The C-class MCB can handle moderate inrush currents, such as those caused by air conditioners or refrigeration units. Their ability to withstand these surges while still providing protection against overloads and short circuits makes them ideal for commercial use.

Industrial Use: Industrial settings, with large machinery, industrial equipment, and high-power systems, often require D-class MCBs. These MCBs are designed to handle very high inrush currents, which are common in motors, transformers, and heavy machinery. The D-class MCB’s higher tolerance to surge currents ensures that they provide protection without tripping unnecessarily during the startup phase of heavy industrial equipment. They are robust and offer the necessary protection for circuits with large transformers or motor-driven systems.

Choosing the correct MCB class based on the type of environment ensures that your electrical systems are adequately protected from potential hazards while maintaining operational efficiency.

How to Assess Circuit Load and Inrush Current for MCB Selection (250-300 Words)
When selecting the right MCB class, it’s essential to accurately assess the circuit load and inrush current of the connected devices. This will help you determine which MCB is best suited for the application.

Assessing Circuit Load: The load on a circuit refers to the amount of current drawn by the connected devices during normal operation. This can be calculated by adding up the power ratings of all the devices in the circuit and dividing it by the voltage of the system (e.g., for a 230V single-phase system, you divide the total wattage by 230 to get the current). For example, if a circuit powers an air conditioner and a few lights, the total load would be the sum of their current requirements. Ensure that the MCB is rated slightly higher than the total load to account for any possible variations.

Assessing Inrush Current: Inrush current is the initial surge of electricity that occurs when an electrical device with a motor or transformer starts up. This current is significantly higher than the device’s rated operating current and lasts only for a short period. For example, an air conditioner or refrigeration unit may have an inrush current that is 5 to 7 times higher than its rated current. It’s crucial to select an MCB that can tolerate these high surges without tripping. This is why C and D-class MCBs are typically chosen for circuits with devices that experience high inrush currents.

To assess the correct MCB rating, use the highest expected inrush current when selecting an MCB. Additionally, consider the application’s tolerance to power surges. The right choice will protect the system from overloads and short circuits while preventing nuisance tripping.

Common Misconceptions About MCB Classes (250-300 Words)
There are several misconceptions about MCB classes that can lead to incorrect selections, potentially compromising the safety and efficiency of your electrical systems. Let’s address some of these:

B-class MCBs Are Always the Best for Home Use: While B-class MCBs are common in residential settings, they are not always the best choice. Many homeowners assume that B-class is universally suitable for all home applications, but certain devices, especially those with motors, require higher surge tolerance. For example, air conditioners or refrigerators might require a C-class MCB to handle startup inrush currents.

C-class MCBs Are Suitable for All Commercial Applications: While C-class MCBs are widely used in commercial settings, not all commercial applications require them. Some light commercial applications, such as small offices, may be better suited with B-class MCBs, particularly when the load is minimal, and there are few motor-driven appliances.

D-class MCBs Are Only for Industrial Equipment: Although D-class MCBs are commonly used in industrial applications due to their ability to withstand high inrush currents, some commercial setups, particularly those with large HVAC systems or refrigeration units, may also require D-class MCBs. This is especially true when the inrush current is higher than the tolerance of a C-class MCB.

MCBs Should Be Rated Exactly at the Load’s Current: Another misconception is that the MCB should be rated exactly at the expected load current. While it’s important to select an MCB that suits the load, a safety margin is always necessary to accommodate for transient overload

B, C, and D H2: Factors That Determine the Best MCB Class for Applications

When selecting the best MCB class for your electrical application, several key factors must be considered. These include the nature of the load, the type of equipment you are protecting, and the environment in which the MCB will operate.

1. Nature of the Load: The type of load connected to the circuit plays a major role in MCB selection. For instance, circuits with low or steady loads, such as lighting or household appliances, are better suited for B-class MCBs. These devices do not have high inrush currents and can be quickly protected from overloads. On the other hand, circuits with devices like motors, refrigerators, or air conditioners that draw a high inrush current require a C-class MCB. These MCBs can handle short-duration current spikes without tripping unnecessarily.

2. Inrush Current: Devices with motors or transformers typically experience a high inrush current at startup. In these cases, a D-class MCB may be necessary. It allows higher surge currents and is commonly used for industrial machinery or equipment with large transformers. Choosing an MCB with the appropriate trip curve prevents unnecessary tripping and ensures the protection is efficient.

3. Environmental Conditions: The environment where the electrical system operates also impacts MCB selection. For sensitive areas like laboratories or medical facilities, you may prefer B-class MCBs due to their fast response time. For industrial environments where machinery is the primary load, D-class MCBs are more suitable because they accommodate high inrush currents without tripping.

4. Application Type: Lastly, the classification of the application—whether residential, commercial, or industrial—determines the appropriate MCB class. Residential circuits usually use B or C class, while larger commercial or industrial systems may need C or D class MCBs.

Considering these factors will help ensure the safety and efficiency of your electrical system.

Factors That Determine the Best MCB Class for Applications H2: Comparing MCB Classes for Residential, Commercial, and Industrial Use

Understanding how MCB classes vary in their applications across residential, commercial, and industrial environments is essential for proper circuit protection.

1. Residential Use: In residential environments, the load on the electrical system is typically lower, with appliances such as lighting, small kitchen equipment, and home entertainment systems. Here, B-class MCBs are most commonly used, as these circuits usually don’t experience significant inrush currents. For example, lighting circuits and outlets for small appliances will benefit from the fast tripping characteristics of B-class MCBs, which offer excellent protection from overloads and short circuits without the risk of tripping unnecessarily due to brief inrush currents.

2. Commercial Use: Commercial environments, such as offices, shops, and small manufacturing setups, have a wider variety of electrical loads, from computers and HVAC systems to larger motors. In these cases, C-class MCBs are often the best choice. The C-class MCB can handle moderate inrush currents, such as those caused by air conditioners or refrigeration units. Their ability to withstand these surges while still providing protection against overloads and short circuits makes them ideal for commercial use.

3. Industrial Use: Industrial settings, with large machinery, industrial equipment, and high-power systems, often require D-class MCBs. These MCBs are designed to handle very high inrush currents, which are common in motors, transformers, and heavy machinery. The D-class MCB’s higher tolerance to surge currents ensures that they provide protection without tripping unnecessarily during the startup phase of heavy industrial equipment. They are robust and offer the necessary protection for circuits with large transformers or motor-driven systems.

4. Choosing the correct MCB class based on the type of environment ensures that your electrical systems are adequately protected from potential hazards while maintaining operational efficiency.

Comparing MCB Classes for Residential, Commercial, and Industrial Use H2: How to Assess Circuit Load and Inrush Current for MCB Selection

When selecting the right MCB class, it’s essential to accurately assess the circuit load and inrush current of the connected devices. This will help you determine which MCB is best suited for the application.

1. Assessing Circuit Load: The load on a circuit refers to the amount of current drawn by the connected devices during normal operation. This can be calculated by adding up the power ratings of all the devices in the circuit and dividing it by the voltage of the system (e.g., for a 230V single-phase system, you divide the total wattage by 230 to get the current). For example, if a circuit powers an air conditioner and a few lights, the total load would be the sum of their current requirements. Ensure that the MCB is rated slightly higher than the total load to account for any possible variations.

2. Assessing Inrush Current: Inrush current is the initial surge of electricity that occurs when an electrical device with a motor or transformer starts up. This current is significantly higher than the device’s rated operating current and lasts only for a short period. For example, an air conditioner or refrigeration unit may have an inrush current that is 5 to 7 times higher than its rated current. It’s crucial to select an MCB that can tolerate these high surges without tripping. This is why C and D-class MCBs are typically chosen for circuits with devices that experience high inrush currents.

How to Assess Circuit Load and Inrush Current for MCB Selection H2: Common Misconceptions About MCB Classes

There are several misconceptions about MCB classes that can lead to incorrect selections, potentially compromising the safety and efficiency of your electrical systems. Let’s address some of these:

1. B-class MCBs Are Always the Best for Home Use: While B-class MCBs are common in residential settings, they are not always the best choice. Many homeowners assume that B-class is universally suitable for all home applications, but certain devices, especially those with motors, require higher surge tolerance. For example, air conditioners or refrigerators might require a C-class MCB to handle startup inrush currents.

2. C-class MCBs Are Suitable for All Commercial Applications: While C-class MCBs are widely used in commercial settings, not all commercial applications require them. Some light commercial applications, such as small offices, may be better suited with B-class MCBs, particularly when the load is minimal, and there are few motor-driven appliances.

3. D-class MCBs Are Only for Industrial Equipment: Although D-class MCBs are commonly used in industrial applications due to their ability to withstand high inrush currents, some commercial setups, particularly those with large HVAC systems or refrigeration units, may also require D-class MCBs. This is especially true when the inrush current is higher than the tolerance of a C-class MCB.

4. MCBs Should Be Rated Exactly at the Load’s Current: Another misconception is that the MCB should be rated exactly at the expected load current. While it’s important to select an MCB that suits the load, a safety margin is always necessary to accommodate for transient overload.

Conclusion

Understanding the different classes of MCBs—B, C, and D—is essential for ensuring the safety and efficiency of electrical systems. Each MCB class is designed to handle specific types of loads and inrush currents, making it crucial to select the right one based on the characteristics of your application. For residential settings, B-class MCBs typically offer the best protection for low inrush current devices, while C-class MCBs are ideal for commercial applications with moderate surge currents. In industrial environments, D-class MCBs are often necessary to protect equipment with high inrush currents, such as large motors and transformers.

By considering factors like load type, inrush current, and environmental conditions, engineers can make informed decisions that not only protect circuits from overloads and short circuits but also prevent unnecessary tripping. Understanding these principles and selecting the appropriate MCB class will ensure the reliability, longevity, and safety of your electrical systems.

Remember, the right MCB isn’t just about protecting the circuit; it’s about ensuring the optimal operation of the equipment connected to it. By making thoughtful selections based on real-world requirements, engineers can contribute to the overall performance and safety of electrical installations across residential, commercial, and industrial environments.
