Key Takeaway

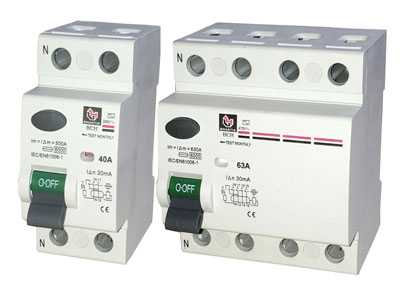

An RCCB (Residual Current Circuit Breaker) is used to protect people and property from electrical shocks and fire hazards caused by leakage currents. It works by detecting an imbalance between the live and neutral wires and quickly disconnecting the power supply. RCCBs are essential in residential, commercial, and industrial setups to enhance safety.
RCCBs are commonly installed in areas prone to moisture, such as bathrooms, kitchens, and outdoor spaces, where the risk of leakage is higher. They are also widely used in industrial settings to protect workers and equipment from potential faults. Unlike MCBs, which protect against overloads and short circuits, RCCBs focus on personal safety by preventing electrocution. Using RCCBs ensures a safer and more reliable electrical system.
Applications of RCCB in Residential Settings
In residential settings, RCCBs are primarily used to protect individuals from electrical shock hazards. Residential circuits, especially in wet areas like kitchens, bathrooms, and outdoor installations, are prone to leakage currents. These can occur when worn-out cables or faulty electrical appliances create an unintended path for current to flow, increasing the risk of electric shocks.
An RCCB offers essential protection by quickly detecting any leakage and disconnecting the power supply before anyone gets hurt. This is especially important for households with young children, elderly individuals, or people with special needs who may be more vulnerable to electrical hazards. RCCBs are typically installed in the main distribution board of homes to protect all circuits, ensuring that the entire electrical system is safeguarded.
Moreover, the easy installation and affordability of RCCBs make them a critical safety measure in every modern home. Whether you’re dealing with outdoor lighting, water pumps, or appliances in bathrooms or kitchens, installing an RCCB should be a top priority for protecting both lives and property.
Importance of RCCB in Commercial Electrical Systems
In commercial settings, RCCBs are indispensable when it comes to safeguarding electrical systems and equipment. Unlike residential environments, commercial buildings often involve higher voltage circuits and more complex electrical setups, which require reliable protection mechanisms. Electrical leakage in a commercial setting can lead to significant downtime, fire hazards, and in the worst-case scenario, electrocution. This is where RCCBs step in.
For instance, in office buildings, shopping malls, or restaurants, where multiple appliances and machinery operate at the same time, electrical leakage can go unnoticed, leading to dangerous situations. RCCBs constantly monitor the flow of electricity in the system and cut off power if leakage is detected, protecting both people and expensive equipment.
An RCCB’s role becomes even more crucial in spaces where water is often in use, such as in kitchens, laundromats, or public restrooms. Here, RCCBs mitigate risks associated with moisture-related electrical hazards, making these areas safer for employees and customers. Furthermore, RCCBs help businesses comply with safety regulations and insurance requirements, as many building codes mandate their installation, especially in areas with a higher risk of leakage or shock hazards.
Whether it’s a restaurant where water appliances are in constant use or a data center with high-value electronic equipment, RCCBs provide an added layer of protection that is essential for safe operations in a commercial environment.
You May Like to Read
Role of RCCB in Industrial Safety and Equipment Protection
In industrial settings, RCCBs play a critical role in ensuring both safety and operational efficiency. Industrial environments are typically large, complex, and involve high-powered equipment. These environments often contain machines that operate at high voltages, including motors, generators, and heavy-duty appliances. When an earth leakage occurs in such a setup, the consequences can be devastating, leading to equipment failure, downtime, and even serious injury or death.
Here, RCCBs help prevent electrical hazards by monitoring the imbalance between the live and neutral currents. If any leakage is detected, the RCCB immediately disconnects the power supply, reducing the risk of electric shock to workers and preventing any potential fires caused by faulty equipment. They are commonly used in factories, manufacturing plants, and power generation facilities, where high voltage and high-current equipment are the norm.
In addition to personal safety, RCCBs also help protect industrial equipment from damage. Sensitive machines, such as automated production lines or control systems, are often vulnerable to electrical anomalies. By promptly cutting off the power when necessary, RCCBs reduce the risk of permanent damage to such critical machinery, which could lead to expensive repairs or replacements.
Moreover, RCCBs are increasingly being integrated into smart industrial systems, providing real-time monitoring of leakage currents, helping facilities detect problems early and preventing larger issues down the line. With the ability to adapt to specific safety needs, RCCBs are vital in ensuring smooth operations and a safe working environment in industrial spaces.
Why RCCBs Are Crucial in High-Moisture Environments
One of the most critical applications of RCCBs is in high-moisture environments. Areas such as kitchens, bathrooms, swimming pools, outdoor installations, and other spaces prone to moisture are at a higher risk for electrical leakages. These environments are conducive to water ingress, which can cause electrical systems to malfunction and increase the risk of electrocution.
For instance, in a kitchen, where water is used frequently with electrical appliances like dishwashers, refrigerators, and water heaters, an earth leakage might go unnoticed. This creates a dangerous situation where a person touching a wet surface could suffer a severe electric shock. The installation of an RCCB ensures that any leakage is detected immediately, disconnecting the power supply and preventing injury.
Similarly, in bathrooms, where water from taps, showers, and bathtubs increases the likelihood of electrical hazards, RCCBs are essential. Electrical installations in bathrooms are more susceptible to moisture damage, and RCCBs help in providing an additional layer of protection. By monitoring and disconnecting in case of leakage, RCCBs prevent shock incidents, which are more likely to occur in such wet conditions.
Outdoor installations such as garden lights, fountain pumps, or outdoor electrical outlets also benefit from the protection of RCCBs. Here, moisture from rain, dew, or sprinklers could cause faults that RCCBs are designed to detect, ensuring that the safety of workers or residents is maintained.
In environments where moisture and water contact are frequent, RCCBs are a must-have to ensure both safety and equipment longevity.
Guidelines for Selecting RCCBs for Specific Applications
When selecting an RCCB, it’s crucial to consider a variety of factors to ensure the device suits your specific needs. Choosing the right RCCB is essential for maximizing safety and preventing electrical hazards. Here are some key guidelines to follow:
1. Current Rating
Choose an RCCB with an appropriate current rating for the circuit it will protect. Residential setups generally require RCCBs with lower ratings, typically ranging from 6A to 80A, while commercial and industrial setups may require higher ratings due to the larger power demands of the systems.
2. Sensitivity Rating
Select an RCCB with the right sensitivity for your application. RCCBs typically come in 30mA or 100mA sensitivity ratings. For residential and small commercial settings, a 30mA RCCB is sufficient to protect individuals from electrical shock. However, industrial applications with equipment that handles high currents may require a higher sensitivity level.
3. Type of Leakage Protection
There are different types of RCCBs designed to detect specific leakage currents, such as AC RCCBs and A-type RCCBs. Choose the correct type depending on the type of equipment in your system. AC-type RCCBs are generally used in domestic applications, while A-type RCCBs are used for sensitive electronic equipment and other specialized setups.
4. Compliance with Standards
Ensure that the RCCB you select complies with relevant local safety standards and electrical codes. This is especially important in commercial and industrial applications where safety regulations are strict.
5. Environmental Considerations
For applications in high-moisture environments, ensure that the RCCB is rated for use in damp or wet areas. Look for RCCBs with an IP rating to ensure they are resistant to moisture and dust ingress.
By considering these factors, you can ensure that the RCCB you select provides the right level of protection for your electrical setup.
Conclusion
In conclusion, RCCBs are vital for enhancing safety in electrical systems, particularly in high-risk environments such as residential, commercial, and industrial spaces. Whether preventing electric shocks in a home, protecting expensive equipment in commercial establishments, or ensuring the safety of workers in industrial settings, RCCBs provide essential protection. Their role in high-moisture environments further underscores their importance in preventing electrical hazards. By carefully selecting the right RCCB for your application, you can safeguard both people and equipment from potentially fatal electrical risks.
