Key Takeaway

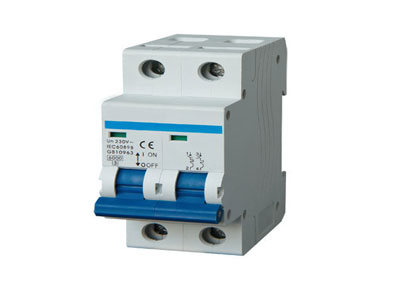

The most common type of MCB (Miniature Circuit Breaker) used in homes is the Type B MCB. It is designed to trip when the current exceeds 3 to 5 times its rated value. This makes it ideal for protecting household circuits, as most appliances have a steady current draw and occasional short bursts of higher current.
Type B MCBs are suitable for lighting circuits, small appliances, and general household use. For higher-powered devices, such as air conditioners or large machinery, a Type C or D MCB may be used. These types trip at higher current levels, offering more protection for heavy loads. It’s important to select the right MCB type based on the specific electrical needs of your home.
Understanding the Role of MCBs in Home Electrical Systems
In a residential electrical system, MCBs are installed in the distribution board (also known as the breaker panel). These devices act as safety switches that automatically cut off the current when they detect an overload or short circuit. This protective measure prevents damage to appliances, wiring, and even the risk of electrical fires.
For newly joined engineers or anyone unfamiliar with electrical systems, it’s important to understand that MCBs protect both people and property. Without these devices, a simple overload or fault could lead to catastrophic damage. For example, overloading a circuit could cause wires to overheat, which could result in a fire. Short circuits could lead to dangerous sparks or electrical shocks. MCBs are designed to trip or shut off the flow of electricity when these issues occur, restoring safety and avoiding significant damage.
In residential settings, MCBs are used to protect lighting circuits, power outlets, and appliances. When you flick a light switch or plug in an appliance, the MCB ensures the electrical flow is monitored and interrupted if it detects an issue. Their role is critical, making them an integral part of modern home electrical systems.
The Different Types of MCBs Commonly Used in Residential Properties
Not all MCBs are the same. Different types are designed to cater to specific needs and electrical load demands. The most common MCB types used in homes are Type B, Type C, and Type D. Let’s break them down:
1. Type B MCBs
These are the most commonly used MCBs in residential properties. Type B MCBs are ideal for circuits where the current load is relatively stable. They trip when the current is 3 to 5 times higher than the rated current. This makes them suitable for lighting circuits, small home appliances, and outlets.
2. Type C MCBs
Type C MCBs are used in circuits that have a higher inrush current, such as when motors or devices like refrigerators, air conditioners, or microwave ovens start up. These devices draw a higher initial current, but the MCB will still trip if the current exceeds 5 to 10 times the rated value. This type is ideal for circuits with motors or high-powered equipment.
3. Type D MCBs
These MCBs are designed for high inrush currents. They trip when the current is 10 to 20 times higher than the rated current. While not typically used in most home applications, they may be required in specialized areas, like workshops or garages, where heavy equipment is used.
4. Type K and Type Z MCBs
These types are not as common in residential homes but are used in sensitive circuits, like computer equipment or electronics, where small changes in current could cause significant damage. Type K MCBs are used for circuits with capacitors, while Type Z MCBs are used to protect sensitive devices.
Choosing the Right MCB for Your Home’s Electrical Load
When selecting an MCB for your home, one of the key factors to consider is the electrical load of the circuits you are protecting. The electrical load refers to the total current drawn by the connected appliances and devices.
For example, lighting circuits in a home will have a much lower load compared to a kitchen appliance circuit that powers a stove or refrigerator. The MCB you choose should correspond to the total expected load of the circuit it’s protecting. Here are some tips to help you make the right choice:
Know the rated current of each circuit: Check the power consumption of the appliances connected to the circuit. This will help you determine the amperage rating required for the MCB.
Choose the correct type: As mentioned earlier, Type B MCBs are good for general residential circuits, while Type C and Type D are needed for circuits with motors or appliances that draw higher current at startup.
Consider the number of devices: The more appliances or devices connected to a circuit, the higher the electrical load. Ensure the MCB can handle the load comfortably without tripping unnecessarily.
Understand the potential inrush current: Certain devices, like motors, can cause a temporary surge of current when turned on. For these circuits, opt for Type C or D MCBs to prevent false trips.
The right MCB will ensure that your electrical system operates smoothly and safely, preventing overloading and protecting your devices.
How MCB Ratings Affect Electrical Safety in Homes
Every MCB has a specific rating that corresponds to the maximum current it can handle before tripping. This rating is critical for ensuring that the breaker functions correctly without compromising safety.
Overcurrent Rating: The MCB’s overcurrent rating is the maximum amount of current the circuit can safely carry. If the current exceeds this limit, the MCB will trip to prevent damage.
Breaking Capacity: This refers to the ability of the MCB to handle a fault or short circuit without damaging the device. A higher breaking capacity means the MCB can handle larger fault currents.
Response Time: The MCB must respond quickly to overcurrents or short circuits. A delay in tripping could lead to overheating or fires.
When selecting an MCB, always check the manufacturer’s specifications for the rated current and breaking capacity. Using an undersized MCB can lead to frequent trips, while an oversized MCB might not provide adequate protection.
Ensure that the MCB matches the electrical load of your home, and always select a device that complies with local electrical standards and codes.
Key Factors to Consider When Installing MCBs in Residential Wiring
Installing an MCB properly is essential to ensure effective electrical protection. Here are some key considerations when installing MCBs in residential wiring:
Correct Placement: MCBs should be installed in the distribution board in a central location that’s easily accessible. This ensures that the breakers are within reach for maintenance or resetting.
Proper Sizing: As we discussed earlier, selecting the correct size of MCB is crucial. This involves knowing the maximum current demand of the circuits and ensuring that the MCB can handle any inrush currents.
Wiring: Ensure that the wires are appropriately sized for the circuit and that they match the MCB’s rating. If the wires are too small, they could overheat before the MCB trips, creating a fire hazard.
Testing: After installation, it’s important to test the MCB to ensure it trips when it should. This can be done by simulating an overload condition and ensuring the breaker responds appropriately.
Regular Inspection: MCBs should be inspected regularly for signs of wear or damage. Faulty breakers could fail to trip during an overload or short circuit, which could cause serious damage to appliances or even lead to fires.
Conclusion
Choosing the right MCB for your home is essential for ensuring electrical safety. Whether you’re protecting lighting circuits, heavy appliances, or sensitive electronics, understanding the different types of MCBs and how they function is crucial for making an informed decision. By choosing the correct type, size, and ensuring proper installation, you can protect your home and loved ones from electrical hazards and ensure your electrical system runs smoothly and safely. Always keep in mind that the right MCB not only provides reliable overload and short circuit protection but also ensures peace of mind knowing your home’s electrical system is safe and secure.
