Key Takeaway
Servo motors are classified into several types based on their power source and function. The two primary types are AC and DC servo motors. AC servo motors are used for high-torque, high-speed applications like industrial machinery, while DC servo motors are preferred for applications requiring precise control and quick response, such as robotics.
Another classification involves the feedback mechanism. Most servo motors use encoders or resolvers to provide real-time data on position, speed, and torque, enabling accurate control. The choice of servo motor type depends on the specific needs of the application, whether it’s power, speed, precision, or control.
Breaking Down Servo Motor Classifications

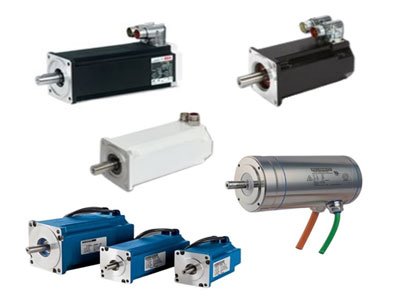

Servo motors are classified based on their operating principles and the type of current they use. The two main categories are AC servo motors and DC servo motors. Each type has unique characteristics that make them suitable for different applications. AC servo motors operate on alternating current and are known for their robustness and efficiency in high-power applications, particularly in industrial environments. They are typically used in situations where precision and high torque are required over a wide range of speeds. On the other hand, DC servo motors, which run on direct current, are appreciated for their simplicity and ease of control. They are often used in applications requiring quick response times and precise control, such as in robotics and small-scale automation systems.
AC vs. DC Servo Motors: Key Differences
When comparing AC and DC servo motors, the key differences lie in their power supply and the way they control motor functions. AC servo motors operate using alternating current (AC), making them well-suited for applications requiring high torque and speed. Their ability to handle significant power loads and their robustness in industrial environments like automation and CNC machinery make them a preferred choice for heavy-duty tasks. AC motors also tend to be more durable and capable of sustaining performance over long periods, even under intense operational conditions.
On the other hand, DC servo motors are powered by direct current (DC), which offers more precise control over speed and position. This makes them ideal for applications that demand fine adjustments, such as in robotics or precision machinery. DC motors are generally simpler and less expensive to control because they require fewer components for regulation and feedback. However, they may not provide the same level of power and efficiency as AC motors in high-demand situations. Therefore, understanding these distinctions is crucial when selecting the appropriate motor type, as each has specific strengths and limitations that can impact the overall performance of your system.
The Role of Feedback Mechanisms in Servo Motors
Feedback mechanisms are a cornerstone of servo motor functionality, ensuring that the motor operates with the desired precision and accuracy. These mechanisms typically involve devices such as encoders and resolvers, which continuously monitor the motor’s performance by measuring key variables like position, speed, and torque. This data is relayed back to the servo drive, which uses it to make real-time adjustments, maintaining the motor’s operation within the specified parameters.
In a closed-loop control system, this feedback allows for high levels of accuracy and responsiveness. For instance, in robotics or CNC machines, where even slight deviations can lead to significant errors, feedback mechanisms ensure that the motor’s movements are precisely aligned with the control inputs. This continuous monitoring and adjustment reduce errors, enhance reliability, and improve the overall efficiency of the system. Without these feedback loops, servo motors would struggle to maintain the exacting standards required in many advanced industrial applications, highlighting the critical role of feedback in achieving optimal performance.
Performance Characteristics of Different Servo Motor Types
Different servo motor types exhibit unique performance characteristics that are critical when choosing the right motor for your application. AC servo motors are renowned for their high torque output and stability, particularly in high-speed operations. They excel in industrial settings where heavy-duty tasks require consistent power delivery and robust performance. AC servo motors are also more energy-efficient, especially in applications demanding high power, making them ideal for continuous operations in manufacturing and automation environments.
DC servo motors, in contrast, are valued for their ability to deliver precise control over speed and position, making them perfect for applications that require quick acceleration and deceleration. These motors provide smooth, controlled movements at lower power levels, which is essential in tasks like robotics and automated guided vehicles (AGVs). The quick responsiveness of DC motors allows for fine adjustments in positioning, making them indispensable in precision-oriented applications. Ultimately, the choice between AC and DC servo motors depends on whether your application prioritizes high torque and speed or requires fine control and rapid response.
Common Applications of Various Servo Motor Types
Servo motors are integral to a wide range of industries, each type serving specific applications based on its performance characteristics. AC servo motors are commonly utilized in industrial automation, where their power and efficiency are essential. They are crucial in CNC machinery and large-scale robotics, where high torque and stable operation at varying speeds are necessary. These motors are also widely used in conveyor systems, which require consistent performance to manage heavy loads over long periods.
On the other hand, DC servo motors are frequently employed in smaller-scale and precision-focused applications. These include robotics, model making, and consumer electronics, where quick response times and precise control are paramount. DC servos are also found in medical devices, where their accuracy and reliability are critical for delicate procedures. Understanding the typical applications of each servo motor type ensures that you choose the motor best suited to your specific needs, enhancing both performance and efficiency in your operations.
Conclusion
Choosing the right servo motor for your application involves understanding the specific requirements of your project and the characteristics of each motor type. AC servo motors are best suited for high-power, high-torque applications that demand efficiency and durability. In contrast, DC servo motors offer greater control and responsiveness, making them ideal for precision tasks in smaller or more dynamic environments. The role of feedback mechanisms further enhances the precision and reliability of servo motors, making them indispensable in many advanced applications. By carefully considering the unique needs of your project and the strengths of each servo motor type, you can ensure that you select the most suitable motor, leading to improved performance, efficiency, and longevity of your system.
