Key Takeaway

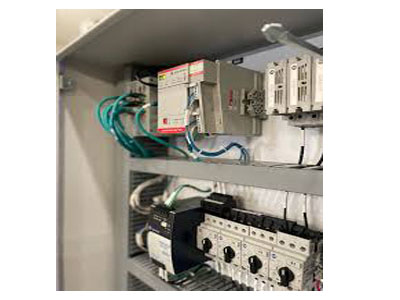

The working principle of a relay in control panels is based on electromagnetic switching. When an electric current flows through the relay’s coil, it generates a magnetic field. This magnetic field pulls a movable armature, which opens or closes the circuit, depending on the relay type.
Relays are used to control high-power circuits with a low-power signal. In control panels, they act as intermediaries, allowing devices like sensors or switches to control motors, pumps, or lights safely. This ensures reliable and efficient operation of electrical systems while protecting components from overloads or faults.
Understanding the Basic Components of a Relay
At its core, a relay consists of a few fundamental components that allow it to perform its switching function. These include the coil, armature, contacts, and spring. The coil is an electromagnet that, when energized, generates a magnetic field. The armature is a movable part that is attracted to the coil when it is energized. This movement causes the contacts to either open or close, depending on the design of the relay. Finally, the spring ensures that the armature returns to its original position once the coil is de-energized, resetting the relay.
The relay’s primary function is to control the flow of electrical current in a circuit. When the control circuit sends a current through the coil, the electromagnet pulls the armature, closing or opening the contacts. This allows the relay to control a larger circuit with a smaller control signal. This is the core of relay technology—using low power to control high-power devices, making it essential in industrial automation for processes that require precision and remote control.
How Electromagnetic Forces Trigger the Relay Mechanism
The heart of the relay’s operation lies in electromagnetic forces. When an electrical current flows through the coil, it generates a magnetic field. This field attracts the armature, which is made of a ferromagnetic material, causing it to move. As the armature moves, it either opens or closes the contacts, which in turn controls the flow of current in the connected circuit.
In the normally open (NO) relay, the contacts are open when the relay is de-energized, and the circuit is incomplete. When the coil is energized, the electromagnetic force causes the armature to move, closing the contacts and completing the circuit. In contrast, in a normally closed (NC) relay, the contacts are closed when the relay is off. Energizing the coil opens the contacts, breaking the circuit.
The electromagnetic mechanism provides several advantages, such as fast switching times and the ability to control a wide range of devices, from small sensors to large industrial machines. This is why relays are used in various control systems, from simple home appliances to complex industrial automation systems.
You May Like to Read
The Role of Contacts in Relay Control Systems
The contacts in a relay are the critical elements that actually open or close the circuit, allowing the relay to perform its switching function. These contacts can be configured in different ways to suit various applications. There are two primary types: normally open (NO) and normally closed (NC).
In a normally open (NO) relay, the contacts remain open when the relay is not energized. When current flows through the coil, it generates a magnetic field that attracts the armature, closing the contacts and completing the circuit. This is the most common configuration used for relays in control panels.
In a normally closed (NC) relay, the contacts are closed when the relay is de-energized, and energizing the coil opens the contacts, breaking the circuit. This type of relay is often used for fail-safe systems where it’s crucial to disconnect the circuit when there is a failure or loss of power.
The contacts can also be designed for multiple poles (to control more than one circuit at once) or multiple throws (to switch between different paths). These configurations allow relays to manage complex systems and provide precise control over electrical devices.
Relay Coil Current and Its Effect on Relay Operation
The coil current plays a crucial role in the operation of a relay. When current flows through the coil, it generates a magnetic field that triggers the movement of the armature. The strength of the magnetic field depends on the amount of current flowing through the coil. A higher current will create a stronger magnetic field, which can move the armature more quickly and reliably.
The relay is designed to operate at a specific current level, known as the pick-up current, which is the minimum current required to activate the relay. If the coil current is too low, the relay may not function correctly, leading to failed operations. Conversely, if the current is too high, it can damage the coil and reduce the lifespan of the relay.
Relay manufacturers typically provide information about the coil voltage and coil current required for proper operation. For instance, low-voltage relays are commonly used in control panels for automation systems, while higher-voltage relays might be needed in more industrial applications where greater control and power are required.
In systems where the coil current fluctuates, or in DC-powered systems, diodes are often used in parallel with the coil to prevent damage from back EMF (electromotive force) generated when the relay is de-energized.
Different Types of Relay Actions and Their Applications in Control Panels
Relays can perform various types of actions based on their design and application. The main types of relay actions include on-delay, off-delay, timed pulse, and latching. Each of these actions has specific uses in control systems.
On-delay relays are used when there is a need for a delay before the relay closes the contacts after being energized. These relays are often used in motor control systems where a delay is needed to prevent immediate start-up or to ensure that certain pre-conditions are met before activation.
Off-delay relays are the opposite—they delay the opening of the contacts after the relay is de-energized. These are commonly used in systems where it is critical for the circuit to remain closed for a certain amount of time even after the control signal is removed, such as in lighting systems where the lights remain on for a few seconds after the control switch is turned off.
Timed pulse relays provide a short pulse of energy after being activated, often used for brief but important actions in a system, such as triggering a valve or activating a sensor for a specific duration.
Finally, latching relays hold the armature in place without continuous current, making them ideal for systems that require a “set and forget” action. These relays are often used in alarm systems or for switching between two circuits without requiring constant power.
Conclusion
Relays play an essential role in control panels by using electromagnetic forces to switch electrical circuits, enabling automation and efficient control. The operation of a relay is driven by the current flowing through the coil, which creates a magnetic field that activates the relay mechanism. The contacts within the relay then determine whether the circuit is open or closed, allowing for precise control over industrial systems. Different types of relay actions, such as on-delay, off-delay, timed pulse, and latching, are used in various applications to provide reliable and safe operation in a wide range of industrial environments.
By understanding the fundamental principles behind relay operation and the factors influencing their performance, engineers can design more effective, durable, and efficient control systems for modern industrial automation.
