Key Takeaway

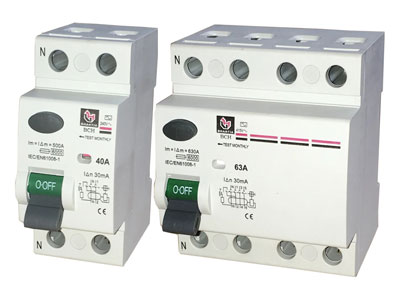

An RCCB (Residual Current Circuit Breaker) is used to protect people from electrical shocks caused by leakage currents. It detects any imbalance between the live and neutral wires, which indicates a leakage, and instantly disconnects the power to prevent accidents.
RCCBs are especially important in areas where the risk of electric shocks is higher, such as bathrooms or kitchens. They provide extra protection by cutting off power when there’s a fault, ensuring safety in your home or workplace. The RCCB helps prevent electrical fires and protects both electrical equipment and individuals.
Understanding the Role of RCCBs in Electrical Safety
An RCCB (Residual Current Circuit Breaker) is a safety device that automatically disconnects the electrical supply when it detects an imbalance between the live (hot) and neutral wires in a circuit. This imbalance is usually caused by leakage currents, often due to faulty wiring, insulation damage, or human error like touching live parts. The RCCB works by sensing the difference in current between the live and neutral conductors, and when the difference exceeds a set threshold, it trips and disconnects the power supply.
RCCBs provide critical protection against electrical shocks, preventing accidents caused by contact with faulty appliances or exposed live wires. They are also vital in reducing the risk of electrical fires that can occur when leakage current goes undetected. RCCBs are essential in ensuring both personal safety and the reliability of electrical systems, making them a must-have component in any modern electrical setup.
How RCCBs Protect Against Electrical Shocks and Faults
RCCBs are designed to protect individuals from electrical shocks caused by leakage current, which occurs when current flows through unintended paths, such as the human body or faulty earth connections. Here’s how RCCBs function in protecting against electrical shocks and faults:
1. Detection of Leakage Current:
RCCBs are equipped with sensors that continuously monitor the current flowing through the live and neutral wires. Under normal conditions, the current flowing through both conductors should be the same. However, when there’s a leakage, the current flowing through the neutral wire becomes less than the current flowing through the live wire. This difference, no matter how small, is enough for the RCCB to detect and trigger a disconnection.
2. Rapid Response:
When the RCCB detects a leakage, it trips the circuit instantly, disconnecting the power supply to the affected area. This rapid response is crucial in preventing serious electrical shocks that could occur if the leakage were left undetected. The trip time of an RCCB is typically in the range of milliseconds, ensuring that the shock hazard is removed as quickly as possible.
3. Protection in Different Scenarios:
Human Contact: If a person touches a live part of an electrical appliance or a faulty wire, the current leakage will flow through the person’s body to earth. The RCCB detects this leakage and disconnects the power supply, thus preventing potentially fatal electric shocks.
Faulty Wiring: In installations where wiring is old or damaged, current leakage can occur, leading to fires or shocks. RCCBs detect these imbalances and prevent further damage.
By instantly cutting off the electrical supply when leakage is detected, RCCBs offer highly effective protection against electrical hazards.
You May Like to Read
Key Differences Between RCCBs and Other Protective Devices
When it comes to electrical safety, there are several protective devices, each with a specific function. Understanding the key differences between RCCBs and other devices like MCBs (Miniature Circuit Breakers) and ELCBs (Earth Leakage Circuit Breakers) is essential for selecting the right protection for your electrical system.
1. RCCBs vs MCBs:
MCBs protect against overcurrent (i.e., excessive current flow due to short circuits or overloads), but they do not provide protection against residual current (leakage currents). An MCB will not trip if there’s an imbalance between the live and neutral conductors.
RCCBs, however, specifically protect against leakage currents and residual current, detecting small imbalances between the live and neutral conductors, which can indicate a leakage to earth or another dangerous fault.
While MCBs are crucial for protecting against overcurrent faults, RCCBs add an extra layer of protection by detecting leakage currents that MCBs cannot.
2. RCCBs vs ELCBs:
Both RCCBs and ELCBs provide protection against earth leakage, but they function differently. An ELCB detects leakage currents flowing from the live wire to earth and trips when a leakage occurs. However, ELCBs have limitations in modern systems, as they may not detect leakage in some earth fault conditions.
RCCBs, on the other hand, are more reliable and sensitive. They detect leakage between both the live and neutral conductors, meaning they provide broader protection and can detect faults even when leakage does not flow directly to earth.
RCCBs are thus more versatile and commonly used in modern systems due to their ability to protect against various leakage scenarios, making them the preferred option in most installations.
3. RCCBs vs RCDs (Residual Current Devices):
The terms RCCB and RCD are often used interchangeably, but technically, an RCD is a more general term that includes both RCCBs and RCBOs (Residual Current Breaker with Overcurrent Protection). An RCBO combines the functionality of an RCCB and an MCB, providing both overcurrent and residual current protection in one device. An RCCB, however, only provides protection against residual current.
In summary, RCCBs are specifically designed to detect leakage currents, while MCBs protect against overcurrent, and ELCBs are more limited in detecting earth leakage. RCBOs combine both functions, making them suitable for installations where both protection types are needed.
Why RCCBs Are Essential for Residential and Industrial Installations
Whether you’re wiring a home or setting up a large industrial facility, the safety of electrical installations is paramount. RCCBs provide a critical layer of protection, and their importance is underscored in both residential and industrial applications.
1. Residential Applications:
In homes, electrical safety is crucial, especially when it comes to preventing electric shocks from faulty appliances or wiring. The risk of electrical shock is higher in residential areas due to the frequent use of appliances, and RCCBs play a key role in protecting household members.
RCCBs are commonly used in modern residential electrical panels to ensure that any leakage current, however small, is detected, preventing serious accidents. They are required by most national safety standards to be installed in homes, making them an essential device for any home wiring project.
2. Industrial Applications:
In industrial settings, the use of powerful machinery, large electrical systems, and complex wiring systems increases the chances of electrical faults. RCCBs are essential in preventing fires, equipment damage, and worker injuries caused by electrical faults.
For industrial facilities, ensuring the safety of workers is critical, and RCCBs help reduce the risk of electric shock from faulty machinery or damaged insulation. They are installed in control panels and distribution boards to protect both the electrical system and personnel working with or around electrical equipment.
3. Cost-Effectiveness and Compliance:
For both residential and industrial installations, RCCBs are cost-effective devices that enhance the overall safety of the system. They help in complying with electrical safety regulations, which often mandate their use in certain environments to ensure user protection.
Overall, RCCBs are vital in preventing accidents and ensuring the reliability of electrical installations in both residential and industrial settings.
How to Properly Install and Maintain an RCCB for Maximum Protection
Installing and maintaining an RCCB properly is crucial to ensuring it works as intended, providing reliable protection against electrical hazards. Here’s a guide on how to install and maintain an RCCB to maximize its effectiveness:
1. Proper Installation:
Hire a Qualified Electrician: RCCB installation should always be carried out by a qualified and licensed electrician to ensure it meets local electrical codes and safety standards.
Choose the Right Rating: Ensure the RCCB has the correct current rating and sensitivity for your system. It should match the total load of the electrical circuit and be sensitive enough to detect small leakage currents.
Positioning: Install the RCCB at the incoming supply point of the electrical system. Ensure it’s installed in an accessible and dry location, away from moisture or exposure to physical damage.
2. Regular Maintenance:
Test the RCCB: RCCBs have a test button that should be pressed regularly (at least once a month) to ensure it is functioning properly. If the RCCB doesn’t trip when tested, it may need servicing or replacement.
Check for Wear and Tear: Over time, electrical systems can experience wear and tear. Inspect the wiring connected to the RCCB for any signs of damage, such as fraying or burns.
Routine Inspections: Schedule routine inspections of the RCCB to ensure it is free from dust, debris, or moisture that might interfere with its operation. Replace the RCCB if it shows signs of malfunction or aging.
By ensuring proper installation and routine maintenance, RCCBs will continue to provide maximum protection for the electrical system.
Conclusion
In conclusion, RCCBs play a vital role in electrical safety by detecting residual current leakage, preventing electrical shocks, and safeguarding electrical systems. Their proper installation and regular maintenance ensure long-term protection for residential and industrial installations alike. Whether in homes or large industrial setups, RCCBs contribute to reliable, safe, and efficient electrical systems, making them an essential component for ensuring the safety of both people and property.
