Key Takeaway

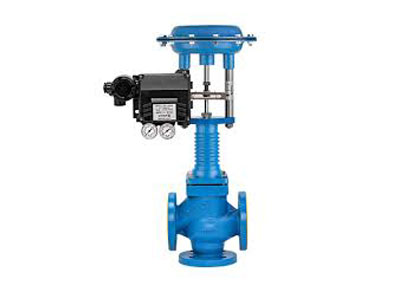

The principle of a control valve is based on regulating the flow, pressure, or fluid level by varying the valve’s opening. An actuator, controlled by a signal from a control system, adjusts the position of a closure element, such as a plug or disk, to change the flow path. This enables precise control over the fluid’s velocity or pressure, ensuring stable system operation.
Control valves often operate in a closed-loop system, where sensors provide feedback on flow parameters like pressure and temperature. This feedback allows the control system to make real-time adjustments, optimizing performance. This principle makes control valves indispensable in industries like oil and gas, water treatment, and chemical manufacturing.
Basic Principle of Control Valves
The basic principle of control valves involves regulating the flow rate of fluid or gas in a system to maintain desired operating conditions. Control valves use a movable element to adjust the flow passage.
These valves are essential components in various industries, providing precise flow regulation and ensuring optimal system performance. They are used in applications requiring accurate control of flow rates, pressure, and temperature.
Advanced control valves often include features such as flow monitoring and automatic adjustment capabilities. These features enable precise control of flow distribution and help optimize system efficiency.
Components and Their Functions
Control valves (CVs) are made up of several key components, each playing a vital role in regulating fluid or gas flow within a system. The primary component of a control valve is the valve body, which houses all other components and provides the flow path for the medium. The body is typically constructed from durable materials, such as stainless steel or brass, to withstand high-pressure environments. The valve seat within the body provides a sealing surface for the valve plug, preventing leaks when the valve is closed.
The valve actuator is another crucial component that controls the movement of the valve plug. Actuators can be either electric, pneumatic, or hydraulic, depending on the system’s needs. These actuators apply force to the valve plug, opening or closing the valve to regulate flow. The actuator is typically controlled by a controller, which adjusts the valve based on input signals from flow meters or pressure sensors within the system.
The valve plug is the part that moves to control the flow rate by blocking or opening the flow path. In most control valves, the plug’s movement is directly linked to the position of the actuator, which allows for precise control over the flow. Together with the stem (which connects the actuator to the plug), the components of the control valve work in unison to ensure the system operates within the required parameters, ensuring safety and efficiency.
You May Like to Read
How Control Valves Regulate Flow
Flow Control Valves (FCVs) play a crucial role in regulating fluid flow in systems where precise control is required to ensure optimal performance. These valves operate by adjusting the size of the valve opening in response to signals from controllers, which continuously monitor flow rate, pressure, and other system parameters. As the flow rate increases or decreases, the valve adjusts accordingly, ensuring that the system remains balanced and operates within safe limits.
In their simplest form, FCVs rely on a manual mechanism or motorized actuator to change the valve’s position, allowing the user to control the flow rate. In automated systems, the valve’s position is adjusted automatically based on inputs from flow meters, pressure sensors, or temperature gauges. The actuator responds to these inputs by either opening or closing the valve to maintain the desired flow rate, providing smooth and continuous control over the fluid.
The most common types of FCVs include globe valves, ball valves, and butterfly valves, each designed for different flow control applications. For example, globe valves are ideal for applications that require precise regulation of flow, while ball valves are often used in applications where fast and reliable on/off control is needed. Butterfly valves are more commonly used for large-scale fluid systems where space is limited but flow control is still essential. The selection of the appropriate valve type depends on factors such as the type of fluid, the required flow range, the level of precision, and the operating conditions of the system.
Applications in Various Industries
Control Valves (CVs) are widely used across different industries to regulate fluid flow, pressure, and temperature. In the oil and gas industry, CVs are critical in managing the flow of oil and gas through pipelines, ensuring consistent pressure and flow rates. Similarly, in the chemical processing industry, CVs control the flow of various chemicals in reactors, mixers, and other systems, maintaining optimal reaction conditions and preventing overpressurization.
In power plants, CVs regulate the flow of steam and water, ensuring the proper functioning of turbines and boilers. They are also used in water treatment plants to control the flow of water and chemicals, ensuring effective filtration and disinfection processes. In HVAC systems, CVs regulate the flow of air, ensuring that temperature and airflow remain stable within building systems.
Control valves play an essential role in maintaining the safety and efficiency of these systems by preventing overpressurization and ensuring accurate flow control. Their versatility across industries highlights their significance in industrial operations.
Advantages of Using Control Valves
Control valves are vital for regulating fluid flow, pressure, and temperature in industrial systems. Their primary advantage is precise control, which ensures efficient operation and minimizes energy consumption. By maintaining optimal flow rates, they help systems operate at their peak performance.
Another significant advantage is their versatility. Control valves are available in various types, including globe, ball, butterfly, and diaphragm valves, making them suitable for diverse applications. They can handle different media, such as liquids, gases, and steam, and operate under a wide range of pressures and temperatures.
Control valves also enhance safety by preventing overpressure and ensuring consistent system performance. Automated control valves with advanced actuators and sensors enable real-time adjustments, reducing the need for manual intervention. This improves system reliability and reduces maintenance costs over time.
Conclusion
The principle of a control valve involves regulating the flow rate of fluid or gas in a system to maintain desired operating conditions. Control valves use a movable element, such as a plug or disc, to adjust the flow passage and control the flow rate.
Control valves are essential components in various industries, providing precise flow regulation and ensuring optimal system performance. They are used in applications requiring accurate control of flow rates, pressure, and temperature.
