Key Takeaway

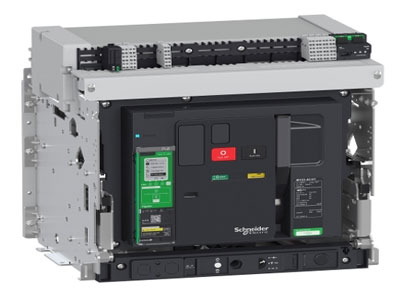

An MCB, or Miniature Circuit Breaker, is a crucial electrical device used to protect circuits from overloads and short circuits. It automatically disconnects the power when it detects excessive current, preventing damage to electrical wiring and equipment.
MCBs are more reliable and efficient than traditional fuses because they can be easily reset after tripping. They are commonly used in homes, offices, and industrial applications. By ensuring safety and preventing fire hazards, MCBs are an essential part of modern electrical systems, providing both convenience and protection.
Understanding the Basic Concept of MCB and Its Role in Circuit Protection
At its core, an MCB is a switch that is designed to automatically break a circuit when it detects a fault condition, such as an overload or short circuit. Unlike older circuit protection methods, MCBs are resettable, which means they can be reused after tripping, making them more cost-effective and easier to maintain. The purpose of an MCB is simple: to protect electrical circuits and prevent damage to both the wiring and connected equipment.
In any electrical installation, an MCB serves as a safety mechanism, cutting off power when a dangerous situation arises. For example, when too many devices are plugged into one circuit, the MCB detects the overload and trips, cutting off the electrical supply to prevent overheating of wires and avoid the risk of fire. This makes MCBs critical for ensuring the safety of both residential and commercial electrical systems. They are often used in distribution boards to safeguard various circuits within a building or industrial setup. Without MCBs, circuits could suffer damage from prolonged electrical faults, leading to costly repairs or even dangerous accidents.
Key Components and Features of an MCB
An MCB is made up of several important components that work together to provide reliable protection. The primary parts include:
1. Switching Mechanism: This is the part of the MCB that allows it to open and close the circuit. When the current exceeds safe limits, this mechanism trips the MCB, cutting the power supply to the circuit.
2. Bimetallic Strip: This is responsible for overload protection. When the current flow is excessive, the bimetallic strip heats up, bends, and causes the mechanism to trip, disconnecting the circuit. This action helps prevent damage to the wiring.
3. Electromagnetic Mechanism: This part is designed for short-circuit protection. When a short circuit occurs, the surge in current activates the electromagnetic coil, which quickly trips the MCB to prevent severe damage.
4. Trip Unit: This is the component that senses abnormal conditions in the circuit. It can be thermal (for overload protection) or electromagnetic (for short-circuit protection).
These components work together to provide reliable protection to electrical circuits. The resettable nature of MCBs ensures they can be used again after a fault is cleared, offering a cost-effective and efficient solution for circuit protection. With features like adjustable trip settings and rapid response times, MCBs can be tailored to meet the specific requirements of different types of electrical installations.
You May Like to Read
How MCBs Provide Overload and Short-Circuit Protection
MCBs provide protection against two major types of electrical faults: overloads and short circuits.
1.Overload Protection: Overload occurs when a circuit is carrying more current than it is designed to handle, often due to too many devices connected to the same circuit. In such cases, the bimetallic strip inside the MCB bends under heat caused by the excessive current. This bending action trips the MCB, cutting off the power supply to the circuit. Overload protection is crucial in preventing overheating, which can lead to the melting of wires and potential fire hazards.
2. Short-Circuit Protection: A short circuit occurs when a live wire comes into contact with a neutral or ground wire, resulting in a massive surge of current. MCBs are designed to react quickly to this surge. When the electromagnetic coil inside the MCB detects a sudden increase in current, it triggers the trip mechanism. This rapid response helps minimize damage to the circuit and prevents fires or equipment damage caused by the short circuit.
By providing both overload and short-circuit protection, MCBs ensure that electrical circuits remain safe from dangerous conditions. Their automatic tripping mechanism helps protect both the wiring and connected equipment from damage, ensuring the safety and reliability of electrical systems. MCBs are also more reliable than fuses, as they can be reset rather than replaced, making them a convenient solution for protecting electrical installations.
Different Types of MCBs and Their Specific Applications
There are several types of MCBs, each designed to handle specific electrical conditions and applications. These include:
1. Type B: This type is designed to handle relatively low inrush currents. It is most commonly used in residential and light commercial circuits, where the electrical load is steady and predictable. Type B MCBs trip when the current exceeds 3-5 times their rated current.
2. Type C: Type C MCBs are used in circuits that have moderate inrush currents, such as industrial equipment and machinery. These MCBs trip when the current exceeds 5-10 times their rated current, making them suitable for environments where short-term surges are common.
3. Type D: Type D MCBs are designed for circuits with high inrush currents, such as large motors or transformers. They can withstand 10-20 times their rated current for a short period before tripping. These MCBs are typically used in industrial settings where large equipment is frequently turned on and off.
4. Type K and Type Z: These types are used for specialized applications. Type K MCBs are suitable for circuits with high inrush currents but lower surge protection, while Type Z MCBs provide high protection against very low fault currents and are used in highly sensitive systems.
Choosing the right type of MCB ensures that your circuit is properly protected. Type B MCBs are ideal for residential use, while Type C and Type D are better suited for industrial applications. Understanding the specific requirements of your electrical system will help you select the right MCB type for optimal protection.
The Importance of MCBs in Ensuring Electrical Safety and Reliability
The importance of MCBs in ensuring electrical safety and reliability cannot be overstated. These devices are designed to protect both people and property from the dangers posed by electrical faults. Overloading circuits or short circuits can lead to serious accidents, including fires, equipment damage, and electrical shocks. MCBs act as a first line of defense by disconnecting power in the event of a fault, reducing the likelihood of these hazards.
In addition to preventing accidents, MCBs also improve the reliability of electrical systems. By quickly disconnecting power when a fault occurs, they prevent further damage to the circuit, ensuring that electrical systems continue to function smoothly. This is particularly important in industrial environments, where equipment downtime can lead to significant financial losses.
By ensuring that circuits are properly protected, MCBs help reduce maintenance costs and extend the lifespan of electrical equipment. Their role in protecting both people and property makes them an indispensable part of modern electrical systems. Whether in homes, offices, or factories, MCBs are essential for maintaining a safe, reliable, and efficient electrical infrastructure.
Conclusion
In conclusion, an MCB (Miniature Circuit Breaker) is an essential safety device that plays a critical role in modern electrical systems. It provides protection against overloads and short circuits, preventing damage to circuits and equipment. With different types of MCBs available, it’s important to choose the right one based on the specific needs of the electrical installation. The components of an MCB, including the bimetallic strip and electromagnetic mechanism, work together to ensure quick and reliable protection. MCBs not only prevent electrical faults but also ensure the smooth operation of circuits, making them indispensable in both residential and industrial applications. By understanding their function and importance, engineers can ensure that electrical systems remain safe and reliable for years to come.
