Key Takeaway
MCB stands for Miniature Circuit Breaker. It is an electrical safety device used to protect electrical circuits from overloads and short circuits. When the current exceeds the safe limit, the MCB automatically switches off the circuit, preventing damage to wires and equipment.
MCBs are widely used in homes, offices, and industrial settings for their reliability and ease of use. Unlike fuses, MCBs can be reset after tripping, making them more convenient. They are an essential part of electrical systems to ensure safety and avoid fire hazards.

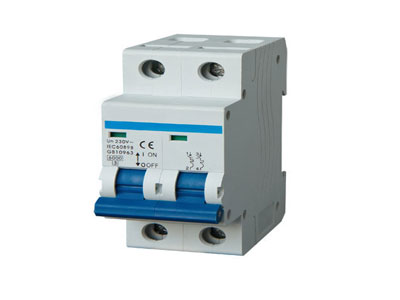

MCB Full Form: Miniature Circuit Breaker Explained
When you hear the term MCB, think of it as the guardian of your electrical circuits. The full form, Miniature Circuit Breaker, aptly describes its purpose—providing a miniature yet efficient safeguard for electrical circuits. The “miniature” part refers to its compact size, allowing it to be installed within standard electrical panels. Despite its small size, it offers critical protection by automatically interrupting electrical current flow when an overload or short circuit is detected.
The role of an MCB extends beyond simple protection. It prevents the overheating of wires, reduces the risk of fires, and protects sensitive devices connected to the circuit. Think of it as a security system for your electrical wiring, ensuring that when the current exceeds safe limits, it halts the flow before any damage occurs. Whether it’s in a residential home or a commercial setup, the MCB acts as the first line of defense, safeguarding equipment and ensuring smooth operations.
Miniature Circuit Breaker Explained H2: The Importance of MCBs in Modern Electrical Systems
In today’s fast-paced world, where almost every device depends on electricity, the importance of MCBs cannot be overstated. MCBs play a pivotal role in modern electrical systems, ensuring the safety of both individuals and equipment. They act as a safety switch that trips when there’s an overload or short circuit, preventing fires, sparks, or damage to electrical devices.
Without MCBs, electrical circuits would be exposed to continuous risks of damage, which could lead to catastrophic outcomes like electrical fires. For instance, during a short circuit, wires could overheat, posing a serious fire hazard. With an MCB in place, however, the breaker trips, cutting off the power supply almost immediately. The convenience of resetting an MCB, rather than replacing a blown fuse, adds both safety and practicality to modern electrical setups. MCBs thus provide a fail-safe mechanism that helps maintain the integrity of electrical installations, reducing the likelihood of accidents and enhancing overall reliability.
You May Like to Read
The Importance of MCBs in Modern Electrical Systems H2: How MCBs Protect Electrical Circuits from Overloads and Short Circuits
MCBs protect electrical circuits from overloads and short circuits by sensing abnormal conditions and disconnecting the power supply instantly. Let’s break it down: in case of an overload, where too many devices are drawing power from the circuit, the MCB trips. This action ensures that the wiring doesn’t overheat, preventing potential fires or damage to appliances.
A short circuit occurs when two conductors come into direct contact, causing a surge of current. The MCB reacts to this surge by tripping, thus preventing further damage. Short circuits are often caused by faulty wiring, damaged insulation, or worn-out equipment. In such cases, an MCB is the first to step in and protect the circuit.
Furthermore, MCBs are designed to react quickly, minimizing the duration of any hazardous electrical condition. This is particularly critical for protecting sensitive devices that could be damaged by electrical spikes. For instance, a computer or medical equipment might suffer irreparable harm if exposed to a prolonged surge of electricity. By quickly cutting off power, MCBs ensure these devices are safeguarded from such dangers.
How MCBs Protect Electrical Circuits from Overloads and Short Circuits H2: Types of MCBs: Understanding the Variations and Their Uses
MCBs come in various types, each designed to meet specific needs and applications. Understanding these types helps ensure the correct MCB is chosen for the job. The most common types include:
1. Type B: These are used in residential and light commercial settings, where the electrical load is relatively consistent. Type B MCBs trip at a low overload threshold, making them suitable for circuits with low inrush currents.
2. Type C: Designed for circuits with moderate inrush currents, such as those found in industrial applications or for devices like motors. These MCBs allow brief surges of current without tripping but will trip once the overload persists.
3. Type D: Typically used for heavy-duty equipment, Type D MCBs can handle high inrush currents. They are ideal for industrial machinery and appliances that require a significant surge of electricity at startup, such as large motors or transformers.
Choosing the right type of MCB ensures your circuit operates safely without unnecessary interruptions. Type B is often sufficient for household appliances, while Type C and D MCBs are essential in more demanding environments. Understanding the application of each type is vital for ensuring long-term safety and efficiency.
Types of MCBs: Understanding the Variations and Their Uses H2: The Evolution of MCBs and Their Role in Electrical Safety
MCBs come in various types, each designed to meet specific needs and applications. Understanding these types helps ensure the correct MCB is chosen for the job. The most common types include:
1. Type B: These are used in residential and light commercial settings, where the electrical load is relatively consistent. Type B MCBs trip at a low overload threshold, making them suitable for circuits with low inrush currents.
2. Type C: Designed for circuits with moderate inrush currents, such as those found in industrial applications or for devices like motors. These MCBs allow brief surges of current without tripping but will trip once the overload persists.
3. Type D: Typically used for heavy-duty equipment, Type D MCBs can handle high inrush currents. They are ideal for industrial machinery and appliances that require a significant surge of electricity at startup, such as large motors or transformers.
Choosing the right type of MCB ensures your circuit operates safely without unnecessary interruptions. Type B is often sufficient for household appliances, while Type C and D MCBs are essential in more demanding environments. Understanding the application of each type is vital for ensuring long-term safety and efficiency.
Conclusion
In conclusion, the Miniature Circuit Breaker (MCB) is an essential device in electrical systems, offering crucial protection against overloads and short circuits. It is a vital component in ensuring the safety of circuits, preventing potential electrical hazards, and protecting valuable equipment. With various types of MCBs available, it’s important to choose the correct one based on the needs of your system. The evolution of MCB technology has made electrical protection more reliable and efficient, making them an indispensable part of modern electrical installations. By understanding the full definition of MCBs, their types, and their role in preventing electrical damage, engineers can ensure safer, more reliable electrical systems for both residential and industrial applications.
