Key Takeaway
SCADA and PLC control panels serve different roles in industrial automation. A PLC (Programmable Logic Controller) control panel is used for real-time control and automation of machinery. It directly manages and controls processes like motors, pumps, or conveyors. PLCs execute programmed instructions and interact with the physical equipment.
On the other hand, a SCADA (Supervisory Control and Data Acquisition) control panel is used for monitoring and controlling entire systems. SCADA collects data from PLCs and other devices, offering a centralized view of operations. It provides operators with real-time insights, alarms, and reports, helping them manage large-scale industrial processes.
In short, PLCs handle the control functions, while SCADA focuses on data collection, visualization, and overall system management.
Defining SCADA Control Systems and PLC Control Panels
To start, it’s important to clearly define both SCADA and PLC control systems. Though they might seem similar at first, they serve distinct purposes in automation.
SCADA Control Systems
SCADA systems are centralized software-based platforms that manage large-scale, complex systems in industries such as energy, manufacturing, and water distribution. They are designed for real-time monitoring and control of various processes across multiple locations. SCADA systems gather data from remote sensors and control devices through a network of field instruments. Operators use SCADA systems to monitor processes from a central location, receive real-time updates, and issue commands to equipment for optimal performance.
SCADA systems are typically composed of sensors, Remote Terminal Units (RTUs), Human-Machine Interfaces (HMIs), communication protocols, and the central SCADA software that consolidates all incoming data. They are responsible for overseeing vast networks and ensuring the smooth operation of distributed systems.

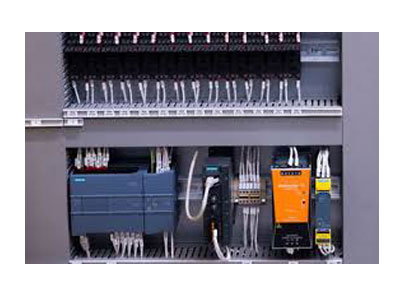

PLC Control Panels
PLCs are programmable devices used to control specific processes within a system. Unlike SCADA systems, PLCs focus on local control, executing predefined tasks based on inputs from sensors and outputs to machinery. A PLC might control a conveyor system in a factory or regulate the flow of water in a treatment plant.
PLCs are typically used for more precise, immediate control tasks. They are programmed to automate equipment actions, ensuring smooth operation within a confined space, like controlling motors, valves, or machinery. PLCs rely on input devices (like sensors or switches) and output devices (such as actuators) to execute commands.
In essence, SCADA oversees and monitors operations at a broader level, while PLCs handle localized control of specific processes or equipment.
Key Functional Differences Between SCADA and PLC Systems
SCADA and PLC systems, while complementary, serve very different functions in industrial automation. Here’s a breakdown of their primary differences:
1. Scope and Control Level
SCADA systems provide supervisory control and monitoring over a large area or network of processes. They can control a range of processes spread across different locations, such as power plants, factories, or water treatment facilities. SCADA systems integrate multiple PLCs and other control devices into a unified network, allowing operators to oversee and manage large-scale operations.
On the other hand, PLC systems focus on localized control. They are used for automating specific tasks within a process, like controlling motors, regulating temperature, or managing conveyor belts. A PLC’s primary responsibility is to ensure the correct operation of individual machines or pieces of equipment.
2. Data Collection and Analysis
SCADA systems are designed for real-time data collection from remote sensors and devices across a large area. They consolidate this data in a central location and display it on Human-Machine Interfaces (HMIs) for operators to analyze. SCADA systems allow operators to monitor the overall performance of a network, detect anomalies, and respond to issues quickly.
PLCs, in contrast, do not focus on data collection and analysis to the same extent. Their primary function is to execute tasks based on predefined logic. While PLCs may monitor inputs and outputs for a given task (e.g., monitoring temperature for a cooling system), they don’t process data for large-scale decision-making the way SCADA systems do.
3. User Interaction
SCADA systems provide a user-friendly interface that allows operators to interact with the system, review data, and make adjustments in real-time. This makes SCADA ideal for tasks that require constant supervision and adjustments over long periods.
PLCs, while they may include an interface for programming and adjustments, don’t offer the same level of real-time monitoring and user interaction. Their main job is to execute commands automatically without needing direct operator involvement unless there is a fault or adjustment required.
4. Automation and Control
Both SCADA and PLCs contribute to automation, but they differ in the way they implement it. SCADA systems provide high-level control and automation over entire networks, allowing operators to monitor and adjust operations in real-time. They may issue commands to PLCs or other control devices to trigger specific actions.
PLCs handle local automation by executing preset instructions for controlling machinery or processes. For example, a PLC might control the start/stop of a pump, open or close a valve, or adjust the speed of a motor based on sensor inputs.
In short, SCADA systems offer centralized, real-time control and data monitoring, while PLCs manage more localized, direct control over specific machinery or equipment.
The Role of SCADA and PLC Panels in Industrial Automation
In industrial automation, SCADA and PLC systems play complementary roles. Both are essential for ensuring the efficient and smooth operation of complex processes. However, their roles differ based on the level of control and monitoring required.
SCADA’s Role
SCADA systems are the eyes and ears of a large operation. They are used for remote monitoring, data visualization, and decision support, providing operators with a centralized view of the system’s performance. SCADA systems are crucial in industries like energy, water treatment, and manufacturing, where a broad range of processes need to be managed across multiple locations.
For example, in a power plant, SCADA systems oversee the entire power generation and distribution process. They monitor electrical substations, track energy consumption, and control operations remotely. SCADA also collects data from field devices, allowing operators to spot trends, detect faults, and make adjustments in real-time to optimize system performance.
PLC’s Role
PLCs focus on automation and control within a smaller, more localized context. In a factory, PLCs control assembly lines, managing tasks such as sorting, packaging, or moving products from one stage to another. Similarly, in water treatment, PLCs control pumps, valves, and filtration systems to ensure that water is processed efficiently.
PLCs enable systems to run automatically with minimal human intervention. For example, a PLC might control the precise temperature and pressure needed for a manufacturing process, making sure it stays within optimal ranges for production. They are essential in situations where fast, real-time decisions are needed to control equipment based on sensor input.
Together, SCADA and PLC systems ensure that complex operations run smoothly and efficiently. SCADA provides oversight, while PLCs execute the necessary controls for specific tasks.
Communication Protocols Used in SCADA vs PLC Control Systems
Communication is a key element in both SCADA and PLC systems, enabling the transfer of data between control panels, field devices, and software. The communication protocols used in SCADA and PLC systems differ, reflecting the distinct roles of each system.
SCADA Communication Protocols
SCADA systems rely on communication protocols like Modbus, DNP3, and OPC to communicate with field devices, PLCs, and RTUs (Remote Terminal Units). These protocols allow SCADA systems to gather data from sensors, transmit commands to PLCs, and provide operators with real-time insights into system performance.
Modbus is widely used in SCADA systems, especially in industrial automation, to connect PLCs and field devices. It’s a simple and robust protocol for transmitting data over long distances.
DNP3 is commonly used in the utility sector, particularly in SCADA systems for power and water management. It is known for its security features and real-time performance.
PLC Communication Protocols
PLCs also use communication protocols to exchange data with other control systems and devices. Common protocols used in PLCs include Modbus, Profibus, and Ethernet/IP. These protocols are crucial for transmitting data from sensors to the PLC and from the PLC to other control systems.
Ethernet/IP is one of the most widely used communication protocols in PLCs, especially in large automation systems. It allows for fast, reliable communication and can be integrated with other networked devices.
Profibus is another popular protocol for PLC systems, providing high-speed communication for industrial environments.
The difference between SCADA and PLC communication protocols lies in their scope and the level of detail they provide. SCADA systems need more robust, wide-reaching protocols to manage large-scale networks, while PLCs focus on more localized, specific communication.
Integration of SCADA and PLC for Optimized Control and Monitoring
SCADA and PLC systems are often used together to create an optimized, automated control system. While SCADA provides the high-level monitoring and decision-making, PLCs handle the localized, direct control of machinery and equipment. When integrated, they work together to streamline operations and ensure real-time monitoring and automation.
The Power of Integration
By linking SCADA and PLC systems, operators can access both the broad, real-time insights of a SCADA system and the precise control offered by PLCs. SCADA systems issue commands to PLCs, which execute these commands locally. In turn, PLCs provide feedback to the SCADA system, allowing for efficient data analysis and continuous optimization of operations.
For instance, in a manufacturing facility, SCADA systems may oversee the entire production line, while PLCs control each stage of the assembly process. If an issue arises in one stage, the SCADA system will alert the operator, who can then use the PLC to adjust the parameters or shut down the system until the problem is resolved.
Through this collaboration, SCADA and PLC systems ensure that operations run smoothly and efficiently, combining the strengths of both systems for optimized automation.
Conclusion
In conclusion, SCADA and PLC control panels are integral to modern industrial automation. SCADA provides centralized supervision and real-time monitoring, while PLCs offer localized control and automation of specific tasks. Together, these systems ensure that industrial operations are streamlined, efficient, and safe. Understanding the roles, functionalities, and integration of SCADA and PLC systems will allow engineers to leverage both technologies for improved system performance and process optimization. Their collaboration drives efficiency, enhances productivity, and ensures that processes remain under tight control and monitoring at all times.
